Product Indication

Degeneration, deformity, or trauma of the tibiotalar and talocalcaneal articulationsin the hindfoot.

Tibiocalcaneal arthrodesis.

Combined arthrodesis of the ankle and subtalar joints.

Avascular necrosis of the ankle and subtalar joints.

Failed total ankle replacement with subtalar intrusion.

Failed ankle arthrodesis with insufficient talar body.

Rheumatoid arthritis.

Severe deformity due to untreated talipes equinovarus or neuromuscular disease.

Severe pilon fractures with trauma to the subtalar joints.

Product Features

AAN Dynamic Compression Slot
The dynamic compression slot provides up to 5 mm of late controlled compression for enhanced stability.
Proximal threaded screw holes minimize the risk of screw back-out and improve stability.

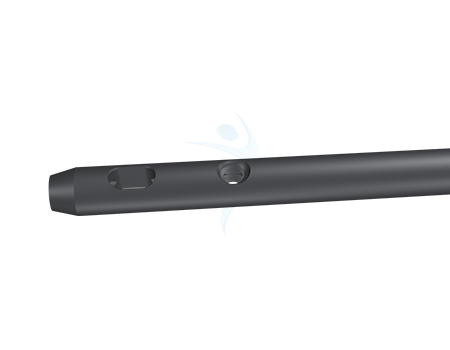

Proximal Threaded Screw Holes

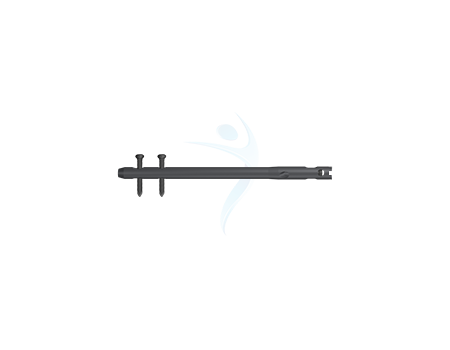

Proximal Static Locking Screw - AAN
The proximal static locking hole ensures rotational stability.
Anatomically designed implants offer a better fit and improved functionality.

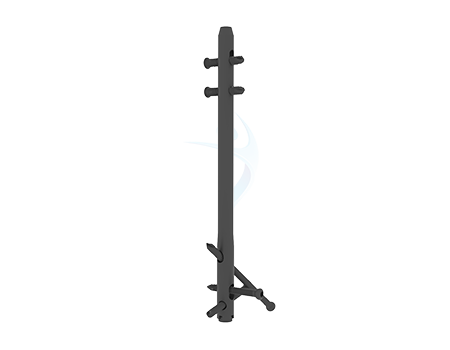

Ankle Arthrodesis Nail With Screw

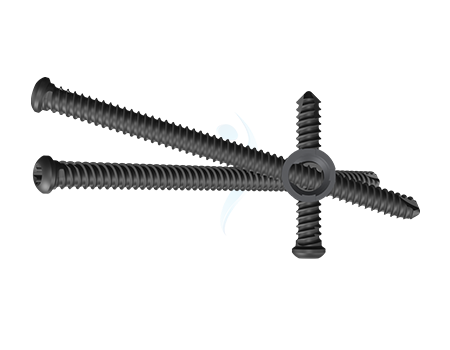

AAN - Diverging Screw Angle
Diverging screw angles allow for precise targeting of specific bones and joints.
A variety of screw sizes give surgeons more choices for customized patient care.

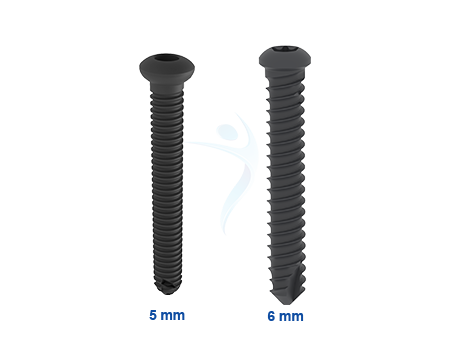

5.0 mm & 6.0 mm Intramedullary Screws

Photo Gallery

Ankle Arthrodesis Nail
5.0 mm Intramedullary Screw
6.0 mm Intramedullary Screw
End Cap 0 mm
End Cap - II
