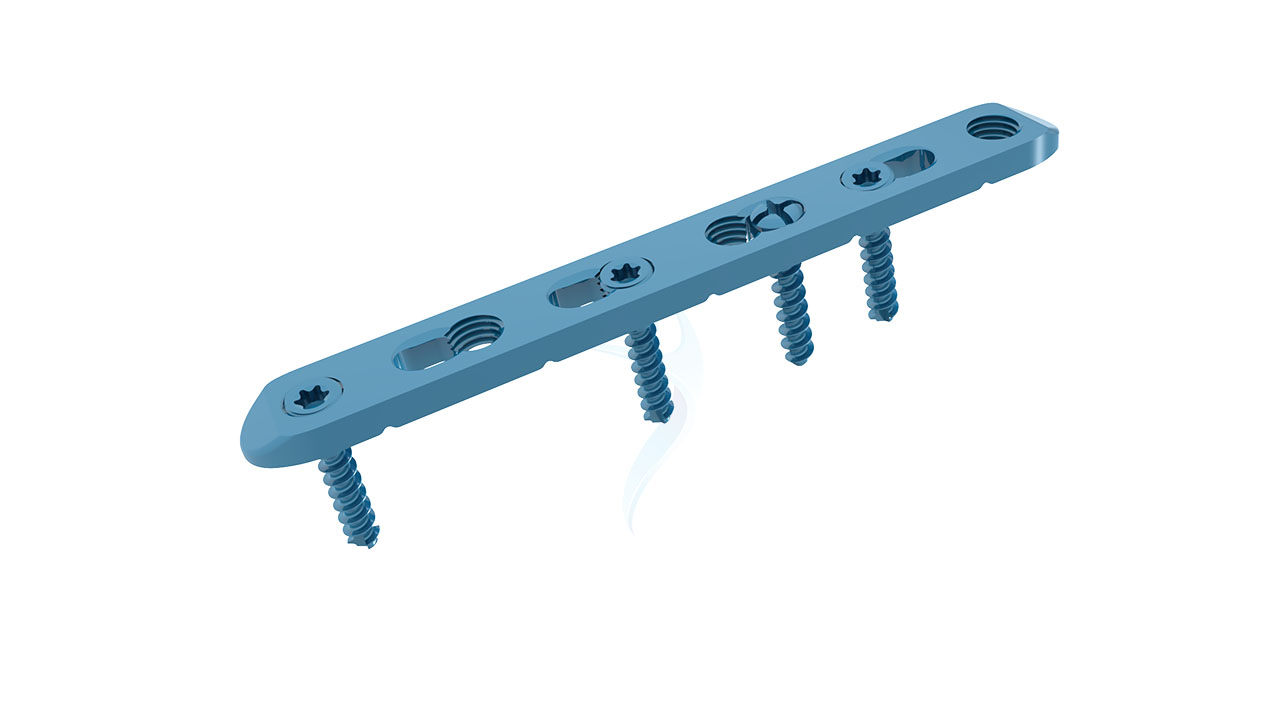

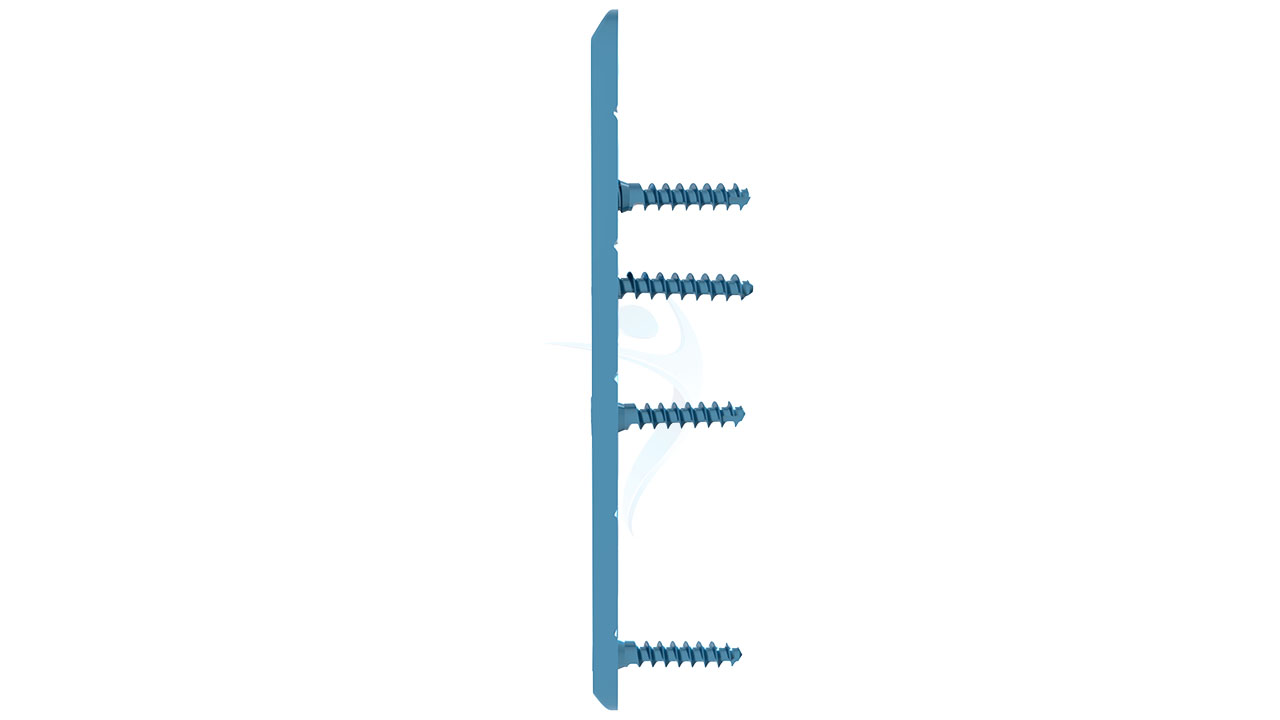

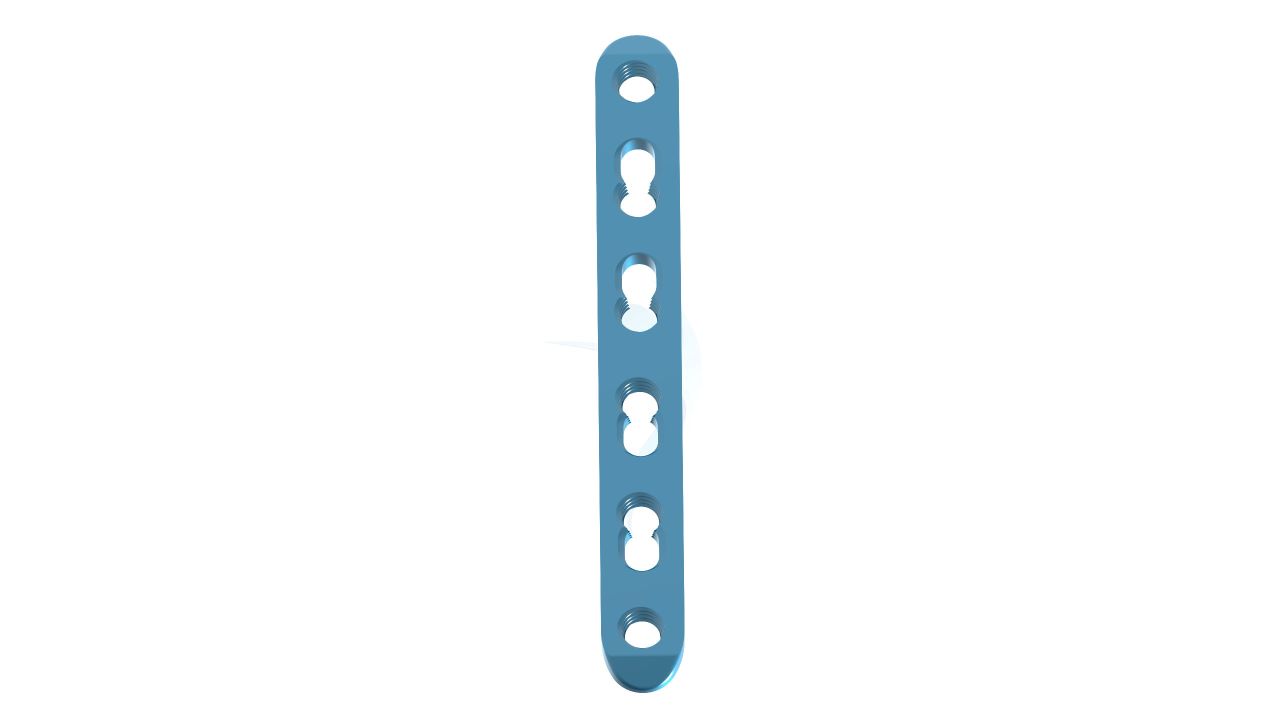

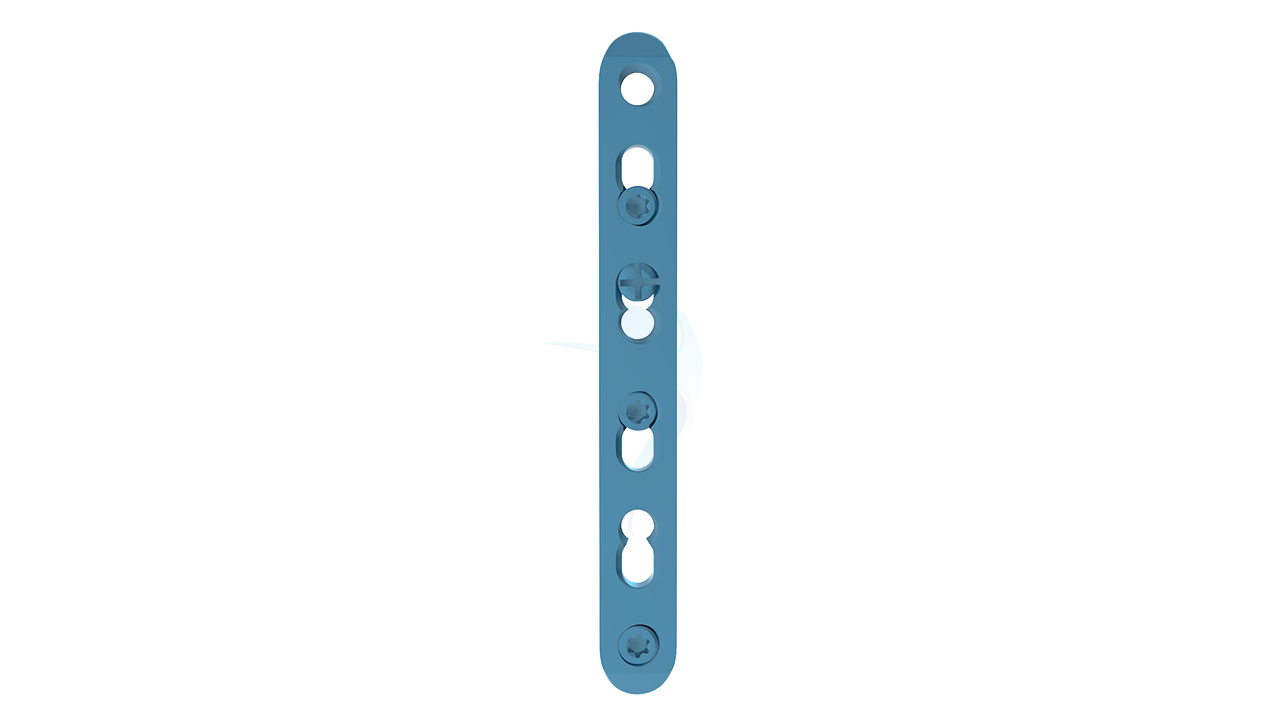

Compact Hand Plates - 1.5 mm Straight
Product Overview
The 1.5 mm Straight Plate is a cutting-edge orthopedic implant tailored for hand injuries and conditions. Engineered with precision, these plates offer robust stabilization for fractures, fusions, or osteotomies of the hand bones. Their slender 1.5 mm profile ensures minimal tissue disruption while providing maximum support, promoting accelerated healing and improved patient outcomes. Designed for ease of use and compatibility with various surgical techniques, these plates epitomize excellence in orthopedic implant technology.
Product Uses
- Fracture fixation : Providing stable support for fractures of the metacarpals, phalanges, or other hand bones.
- Osteotomy stabilization : Facilitating alignment and fusion of bones in cases of deformities or joint reconstruction.
- Joint fusion : Assisting in the fusion of joints affected by conditions like arthritis or trauma.
- Soft tissue repair : Supporting tendon or ligament repairs by reinforcing the surrounding bone structure.
- Revision surgeries : Utilized in secondary procedures to address complications or failures of previous hand surgeries.
- Trauma management : Managing complex hand injuries resulting from accidents or sports-related incidents.
Product Specification
- Material : High-quality medical-grade titanium or stainless steel for strength and biocompatibility.
- Thickness : Slim profile of 1.5 mm for minimal tissue disruption and discreet implantation.
- Length : Various lengths available to accommodate different hand anatomy and surgical needs.
- Design : Straight plate configuration for versatile application in fracture fixation, fusion, or osteotomy stabilization.
- Holes : Multiple precision-drilled screw holes for secure fixation and optimal bone alignment.
- Surface : Smooth surface finish to minimize tissue irritation and facilitate healing.
Compact Hand Plates - 1.5 mm Straight Plate Sizes
| Product Code | Name | Material | Shaft Hole |
|---|---|---|---|
| PT179.04 | 1.5 Straight Plate 4 Hole - ASLP | Titanium | 4 |
| PT179.06 | 1.5 Straight plate 6 Hole - ASLP | Titanium | 6 |
| Product Code | Name | Dia ( mm ) | Length ( mm ) |
|---|---|---|---|
| ST168.06 | ø 1.5 mm Cortex Screw self-tapping ( C.H. ), L 6mm | Ø1.5 | 6 |
| ST168.07 | ø 1.5 mm Cortex Screw self-tapping ( C.H. ), L 7mm | Ø1.5 | 7 |
| ST168.08 | ø 1.5 mm Cortex Screw self-tapping ( C.H. ), L 8mm | Ø1.5 | 8 |
| ST168.09 | ø 1.5 mm Cortex Screw self-tapping ( C.H. ), L 9mm | Ø1.5 | 9 |
| ST168.10 | ø 1.5 mm Cortex Screw self-tapping ( C.H. ), L 10mm | Ø1.5 | 10 |
| ST168.11 | ø 1.5 mm Cortex Screw self-tapping ( C.H. ), L 11mm | Ø1.5 | 11 |
| ST168.12 | ø 1.5 mm Cortex Screw self-tapping ( C.H. ), L 12mm | Ø1.5 | 12 |
| ST168.13 | ø 1.5 mm Cortex Screw self-tapping ( C.H. ), L 13mm | Ø1.5 | 13 |
| ST168.14 | ø 1.5 mm Cortex Screw self-tapping ( C.H. ), L 14mm | Ø1.5 | 14 |
| ST168.15 | ø 1.5 mm Cortex Screw self-tapping ( C.H. ), L 15mm | Ø1.5 | 15 |
| Product Code | Name | Dia ( mm ) | Length ( mm ) |
|---|---|---|---|
| ST168.16 | ø 1.5 mm Cortex Screw self-tapping ( C.H. ), L 16mm | Ø1.5 | 16 |
| ST168.18 | ø 1.5 mm Cortex Screw self-tapping ( C.H. ), L 18mm | Ø1.5 | 18 |
| ST168.20 | ø 1.5 mm Cortex Screw self-tapping ( C.H. ), L 20mm | Ø1.5 | 20 |
| ST168.22 | ø 1.5 mm Cortex Screw self-tapping ( C.H. ), L 22mm | Ø1.5 | 22 |
| ST168.24 | ø 1.5 mm Cortex Screw self-tapping ( C.H. ), L 24mm | Ø1.5 | 24 |
| ST169.06 | ø 1.5 mm Locking Screw self-tapping ( C.H. ), L 6mm | Ø1.5 | 6 |
| ST169.07 | ø 1.5 mm Locking Screw self-tapping ( C.H. ), L 7mm | Ø1.5 | 7 |
| ST169.08 | ø 1.5 mm Locking Screw self-tapping ( C.H. ), L 8mm | Ø1.5 | 8 |
| ST169.09 | ø 1.5 mm Locking Screw self-tapping ( C.H. ), L 9mm | Ø1.5 | 9 |
| ST169.10 | ø 1.5 mm Locking Screw self-tapping ( C.H. ), L 10mm | Ø1.5 | 10 |
| Product Code | Name | Dia ( mm ) | Length ( mm ) |
|---|---|---|---|
| ST169.11 | ø 1.5 mm Locking Screw self-tapping ( C.H. ), L 11mm | Ø1.5 | 11 |
| ST169.12 | ø 1.5 mm Locking Screw self-tapping ( C.H. ), L 12mm | Ø1.5 | 12 |
| ST169.13 | ø 1.5 mm Locking Screw self-tapping ( C.H. ), L 13mm | Ø1.5 | 13 |
| ST169.14 | ø 1.5 mm Locking Screw self-tapping ( C.H. ), L 14mm | Ø1.5 | 14 |
| ST169.15 | ø 1.5 mm Locking Screw self-tapping ( C.H. ), L 15mm | Ø1.5 | 15 |
| ST169.16 | ø 1.5 mm Locking Screw self-tapping ( C.H. ), L 16mm | Ø1.5 | 16 |
| ST169.18 | ø 1.5 mm Locking Screw self-tapping ( C.H. ), L 18mm | Ø1.5 | 18 |
| ST169.20 | ø 1.5 mm Locking Screw self-tapping ( C.H. ), L 20mm | Ø1.5 | 20 |
| ST169.22 | ø 1.5 mm Locking Screw self-tapping ( C.H. ), L 22mm | Ø1.5 | 22 |
| ST169.24 | ø 1.5 mm Locking Screw self-tapping ( C.H. ), L 24mm | Ø1.5 | 24 |
Comprehensive Guide for Compact Hand Plates 1.5 mm Straight Plate
- Patient Evaluation : Assess the patient's medical history, hand function, and any existing conditions affecting the hand.
- Imaging : Conduct pre-operative imaging such as X-rays or CT scans to determine the extent and location of the injury or condition.
- Surgical Planning : Plan the surgical approach, including the size and placement of the "Compact Hand Plates - 1.5 mm Straight Plate" based on the imaging results.
- Informed Consent : Obtain informed consent from the patient after discussing the procedure, risks, and expected outcomes.
- Pre-operative Instructions : Provide the patient with pre-operative instructions, which may include guidelines for fasting, and skin preparation to minimize the risk of surgical site infection.
- Anesthesia : Administer local or general anesthesia based on the patient's condition and surgical plan.
- Incision : Make a small incision over the injured area to access the bone requiring stabilization.
- Plate Preparation : Select an appropriately sized "Compact Hand Plate" and contour it as needed to fit the bone anatomy.
- Plate Placement : Securely position the straight plate over the fractured or fused bone using surgical screws through pre-drilled holes.
- Wound Closure : Close the incision using sutures or staples, ensuring proper wound care and dressing application.
- Recovery Room : Transfer the patient to a recovery area for monitoring until they awaken from anesthesia.
- Pain Management : Manage post-operative pain with prescribed medications and non-pharmacological interventions as needed.
- Rehabilitation : Initiate a hand therapy program to promote range of motion, strength, and function of the hand.
- Follow-up Care : Schedule follow-up appointments to monitor healing progress, assess hand function, and remove sutures or staples as necessary.
- Activity Restrictions : Advise the patient on activity restrictions and hand immobilization techniques to prevent further injury and promote optimal healing.
