Indications & Features
Expert Femur Nail II Indications & Features

Product Indication

Subtrochanteric femur fractures.

Ipsilateral femoral neck and shaft fractures.

Isolated femoral shaft fractures.

Fractures at risk of becoming pathological.

Femoral malunions and nonunions.

Product Features

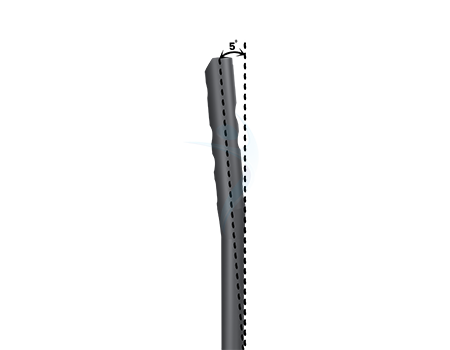

Expert Femur Nail - II Proximal Bend 5 Degree
Proximal bend 5 degree, enables easy insertion from Greater Trochanter.

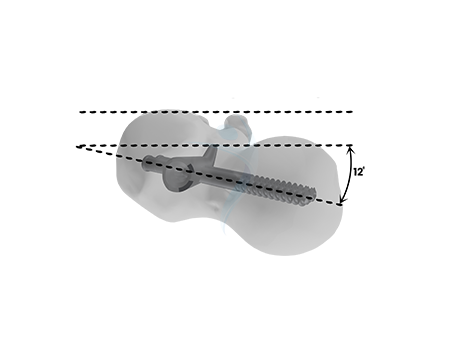

Restriction mode locking nail has 12° anteversion angle.
EFN-12 Degree Anterversion Angle

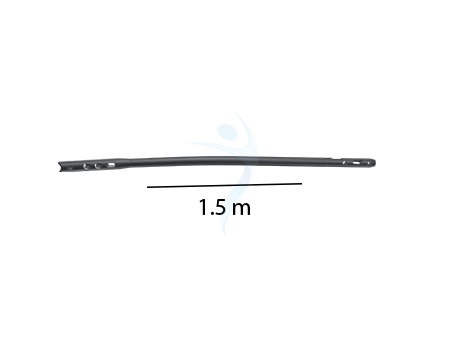

Radius Of Curvature EFN-II
Radius of curvature for the nail is 1.5 m.

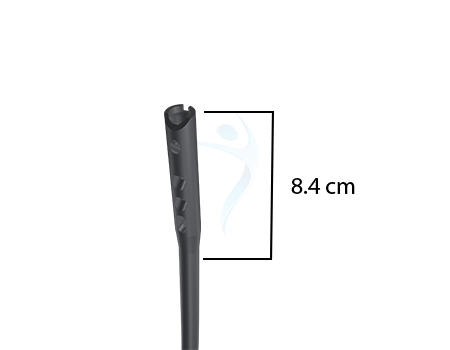

The bend in the nail begins 8.4 cm from its proximal end .
Bend in Expert Femur Nail

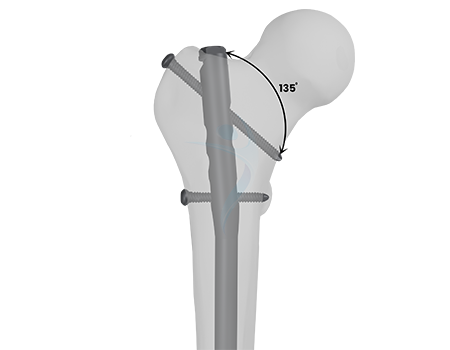

Proximal Locking Static Expert Femur Nail -II
Static Locking - is achieved using a 5mm Advanced IM Nail screw at a 135° antegrade position.(mostly preferred for shaft fractures). It features an antegrade locking hole and a transverse locking slot, provides both static & dynamic locking options.

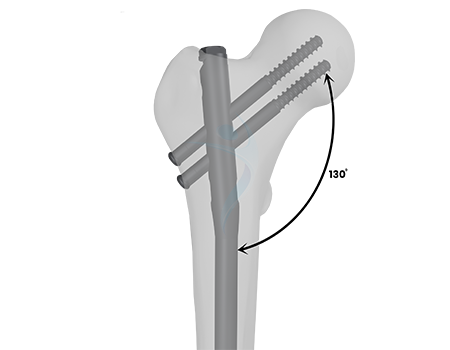

Recon Locking - Recon locking is used for combined femoral shaft and neck fractures, as well as subtrochanteric fractures, utilizing two 7mm EFN II Cannulated Antirotation screws placed at a 130° angle.
Expert Femur Nail II - Proximal Recon Locking

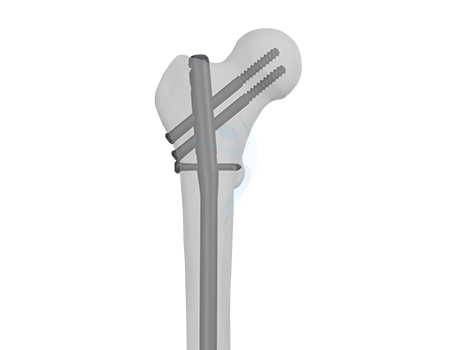

Recon Locking With Transverse Locking Screw EFN-II
Recon Locking with transverse locking screw - Proximal locking includes two recon screws along with a transverse locking screw positioned for static locking.

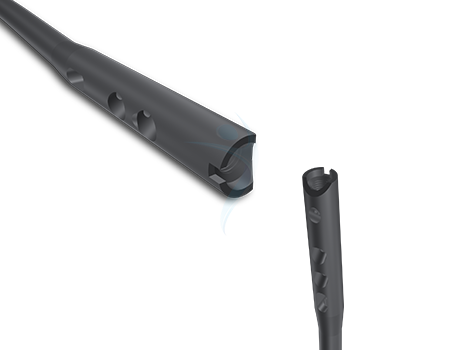

Proximal nail cut ensures clear visibility ofthe implant under C-arm during the surgical procedure.
Proximal Locking options can be done by both 5.0mm Advanced IM Nail Screw or 7mm EFN II Cannulated Antirotation screws.
Expert Femur Nail - II

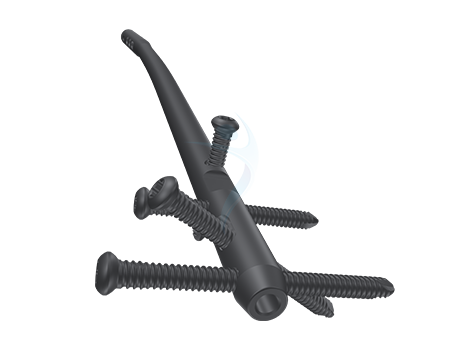

Distal Multi Locking EFN-II
Enhanced stability via multiplanar screw orientation.
Improved anti- rotational control .
Option for distal dynamization to support controlled axial compression.

Photo Gallery

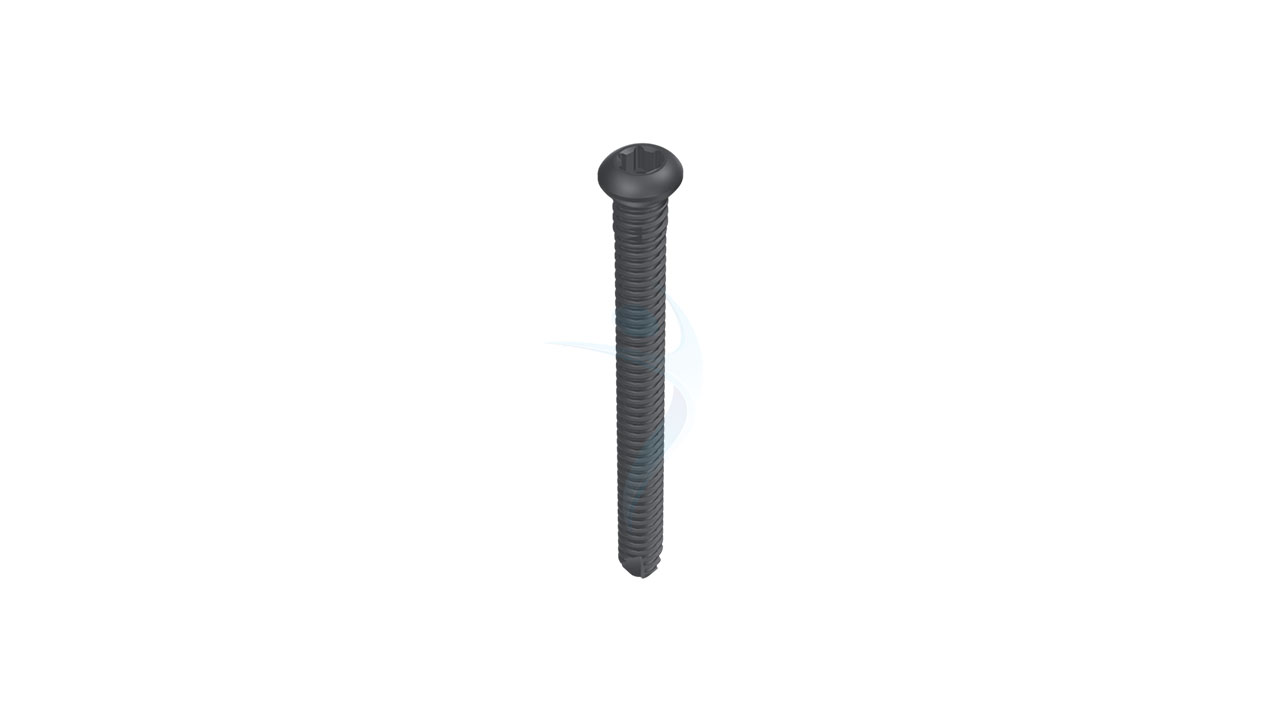

5.0-mm Advanced IM Nail Screw 70-mm
5.0 - mm Advanced IM Nail Screw

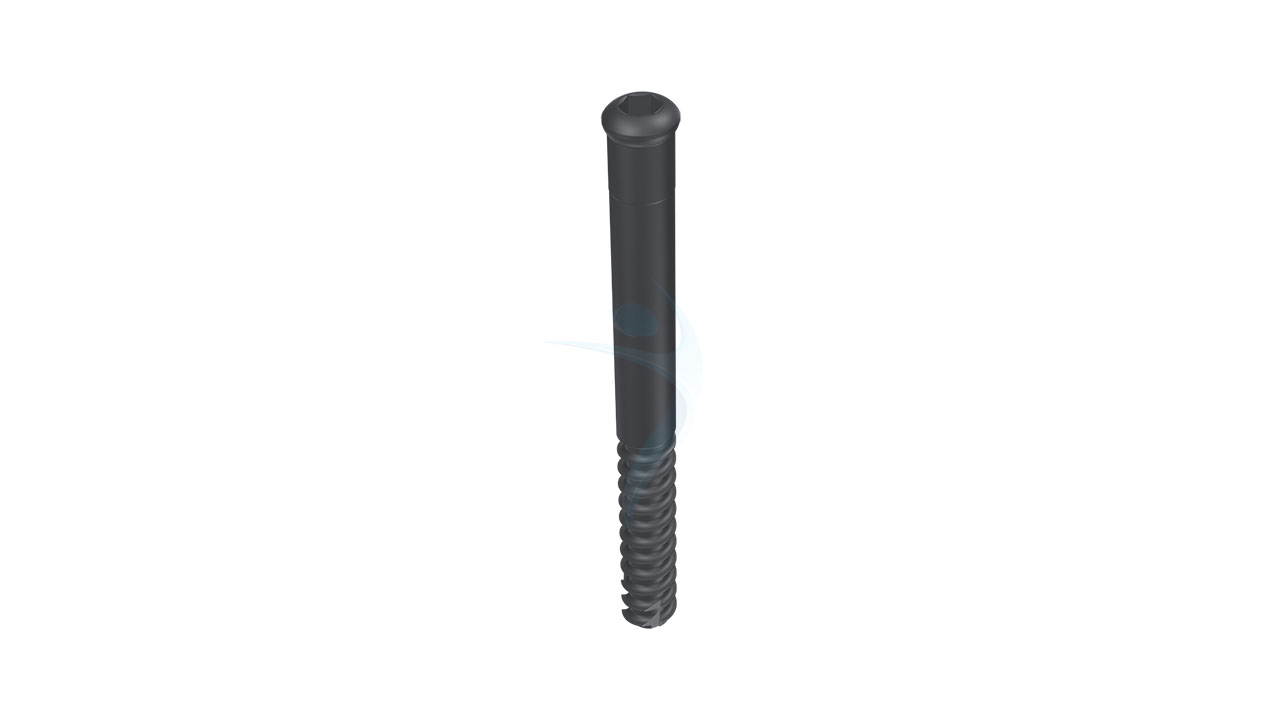

7.0-mm Expert Femur Nail - II Antirotation Screw
7.0 - mm Expert Femur Nail - II Antirotation Screw

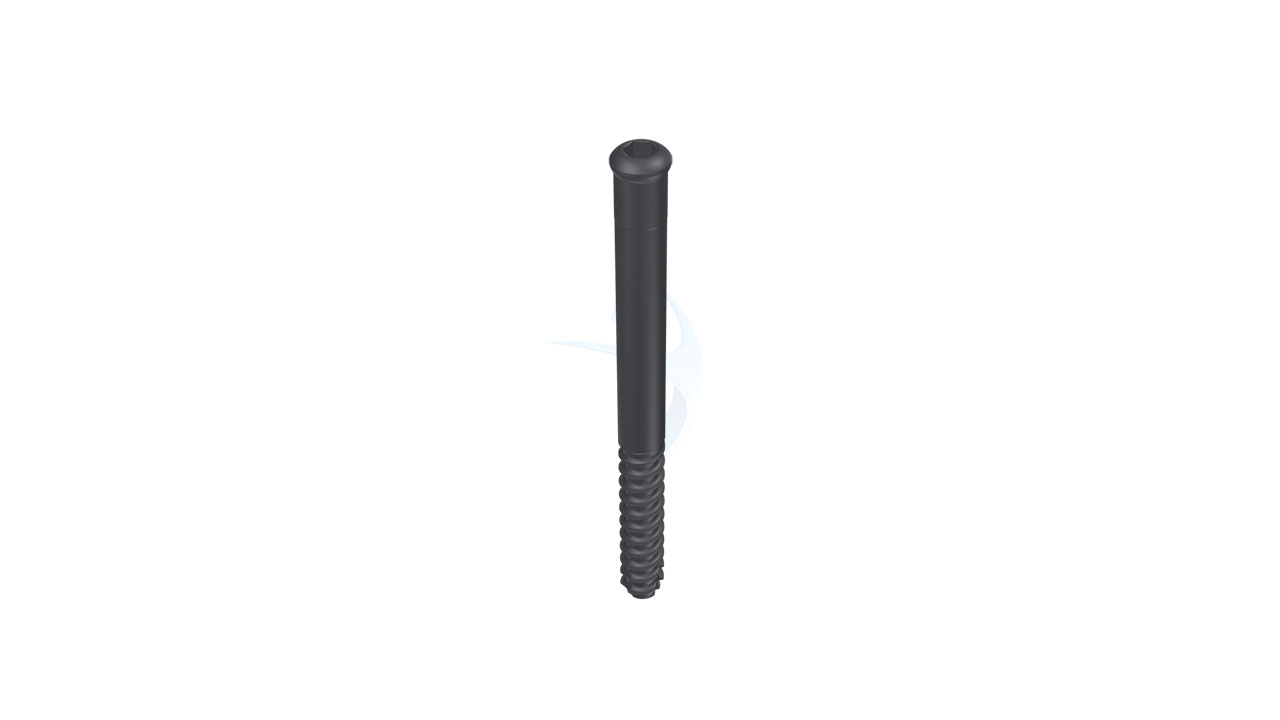

7.0-mm EFN-II Cannulated Antirotation Screw
7.0 - mm EFN-II Cannulated Antirotation Screw

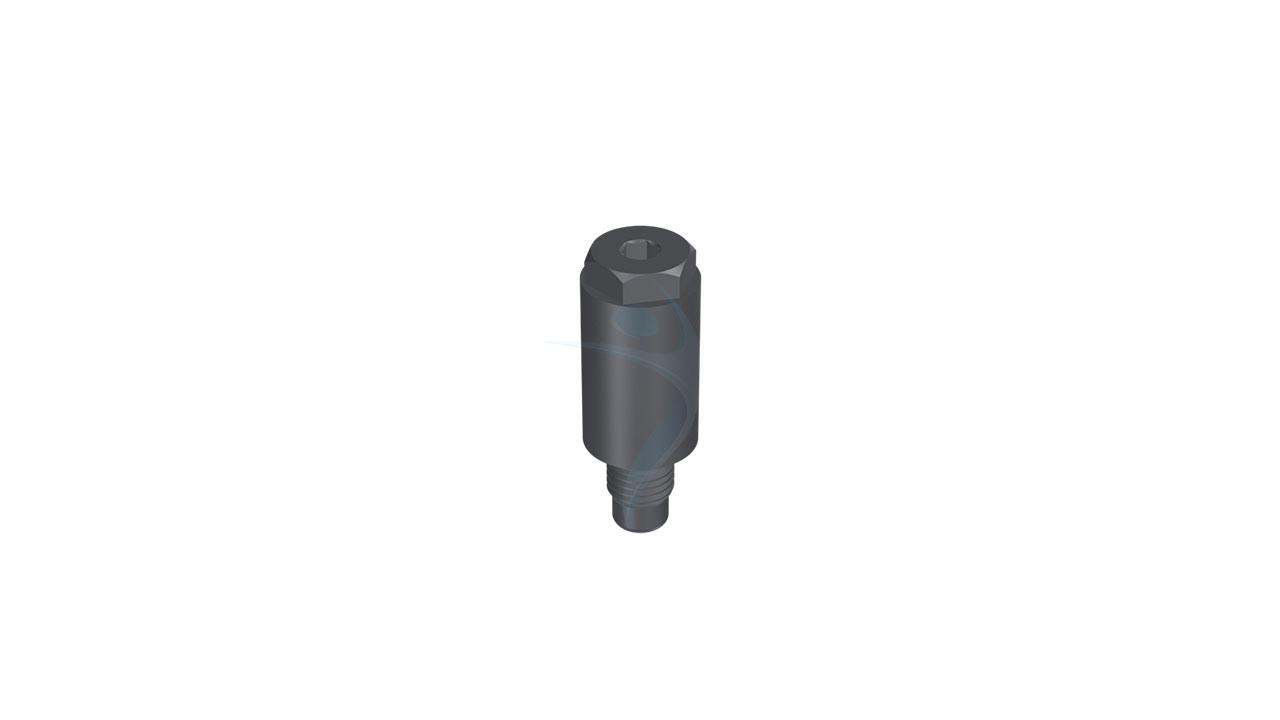

EFN-II End Cap
Expert Femur nail - II End Cap
