Product Indication

Proximal tibial extra-articular fractures

Shaft fractures along the tibial diaphysis

Distal tibial extra-articular fractures

Combined fracture patterns of the proximal, midshaft, and distal tibia

Malunions and non-unions of the tibia

Select intra-articular fractures involving the tibial plateau and pilon

Product Features

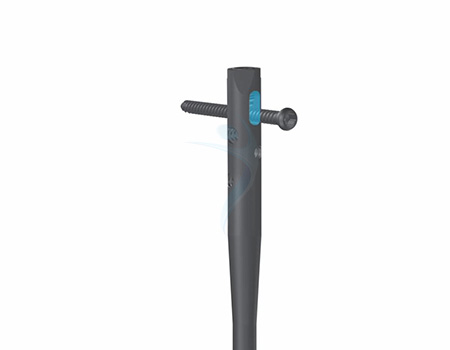

7mm Active Compression Hole Suprapatellar Nail
Proximal dynamization slot offers up to 7mm of active compression.

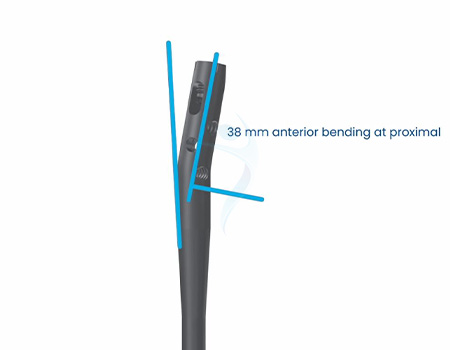

Herzog 10° bend at 38mm reduces posterior cortex impingement.
Suprapatellar Nail 38mm Anterior Bending

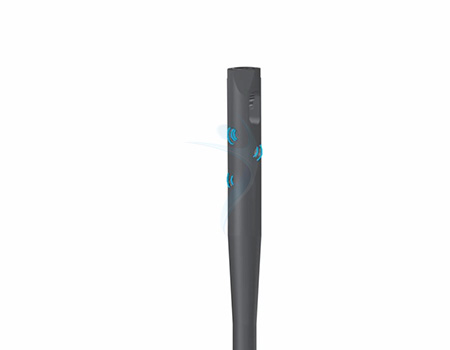

Threaded Holes Suprapatellar Nail
Threaded holes prevent screw back-out and support healing.

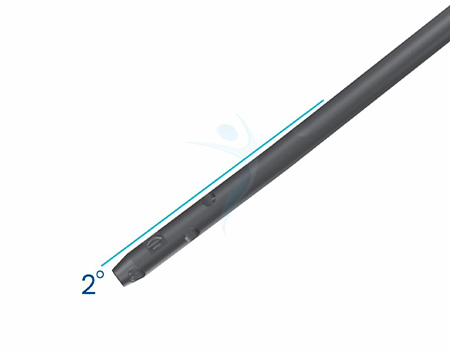

2° distal bend improves fit in the distal tibia.
Distal Bend Distal Tibia (Suprapatellar) ML Nail

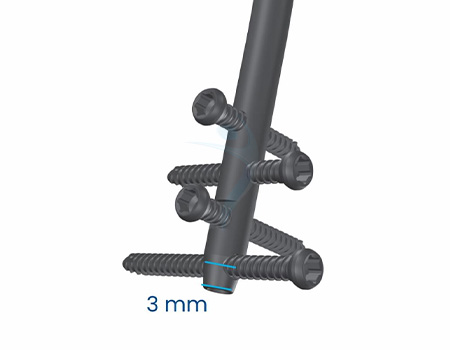

Distal Locking Hole 3mm from Nail tip (Suprapatellar Nail)
Distal locking hole, 3mm from nail tip, secures extreme distal fractures.

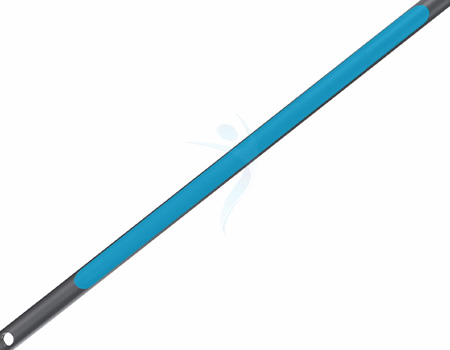

Low Anterior Profile : Reduces irritation to the cortex.
Low Anterior Profile Suprapatellar Nail

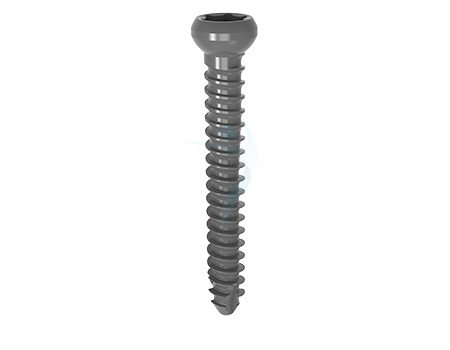

Low Profile Locking Screw
Low-profile locking screws minimize soft tissue irritation.

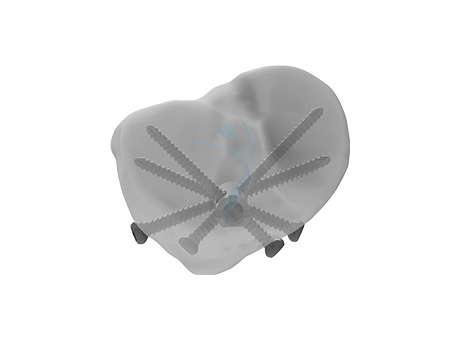

Multi-planar proximal locking holes ensure stable proximal fixation.
Multi Proximal Locking Hole (Suprapatellar Ml Nail)
