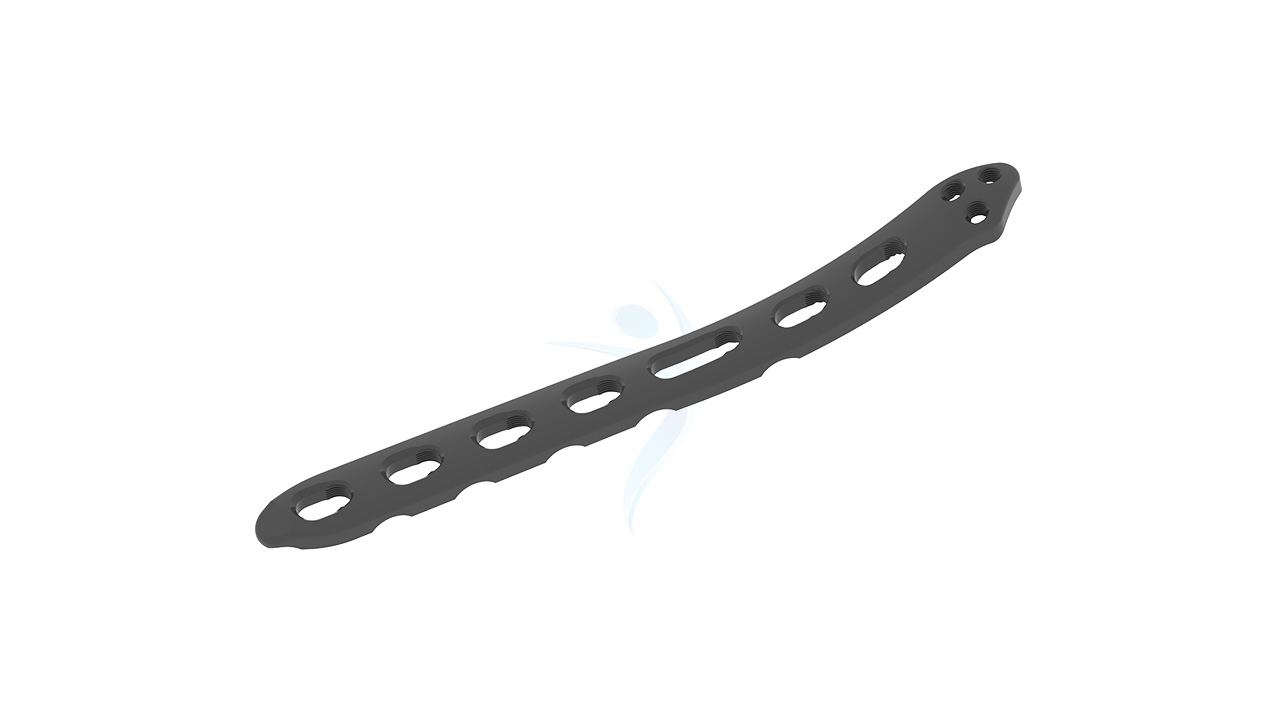

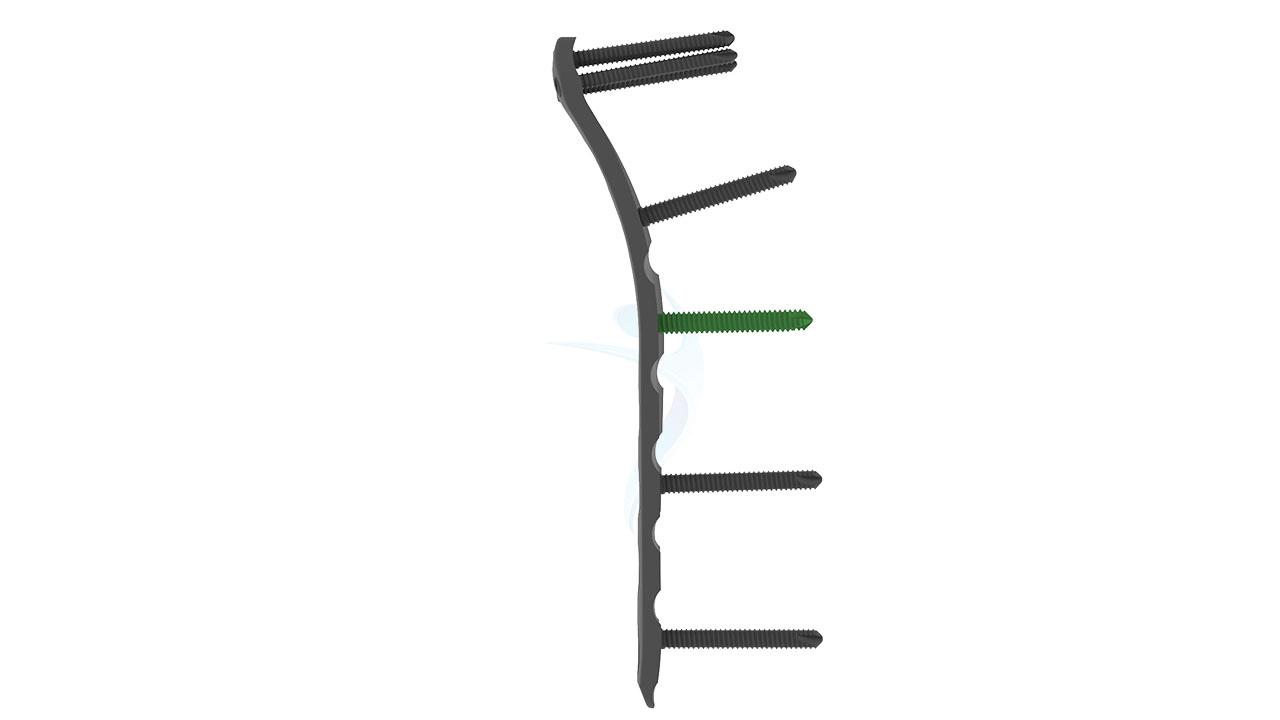

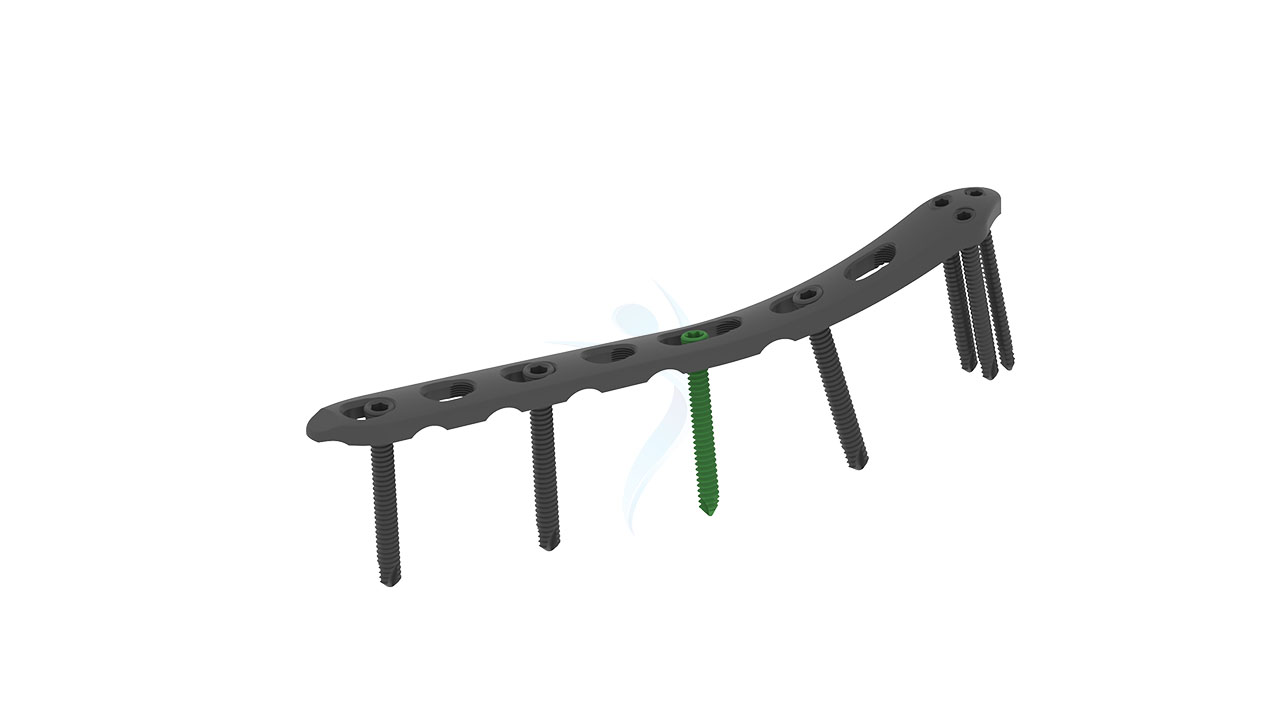

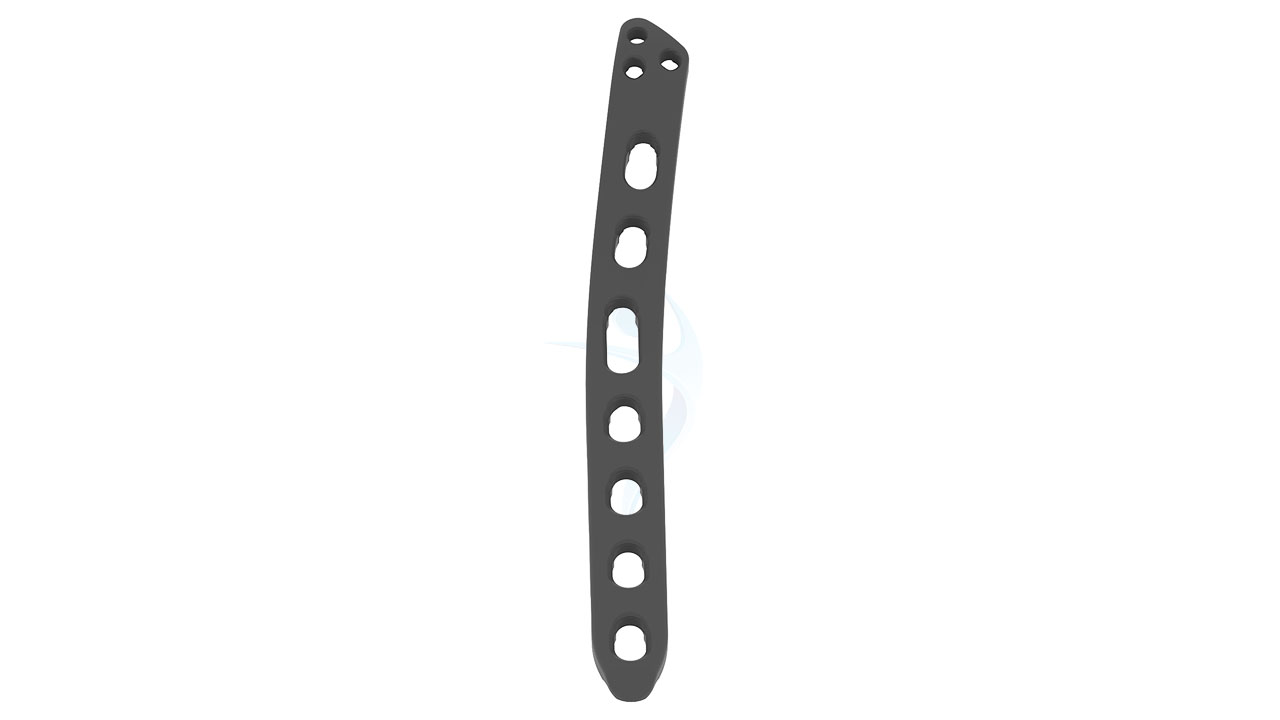

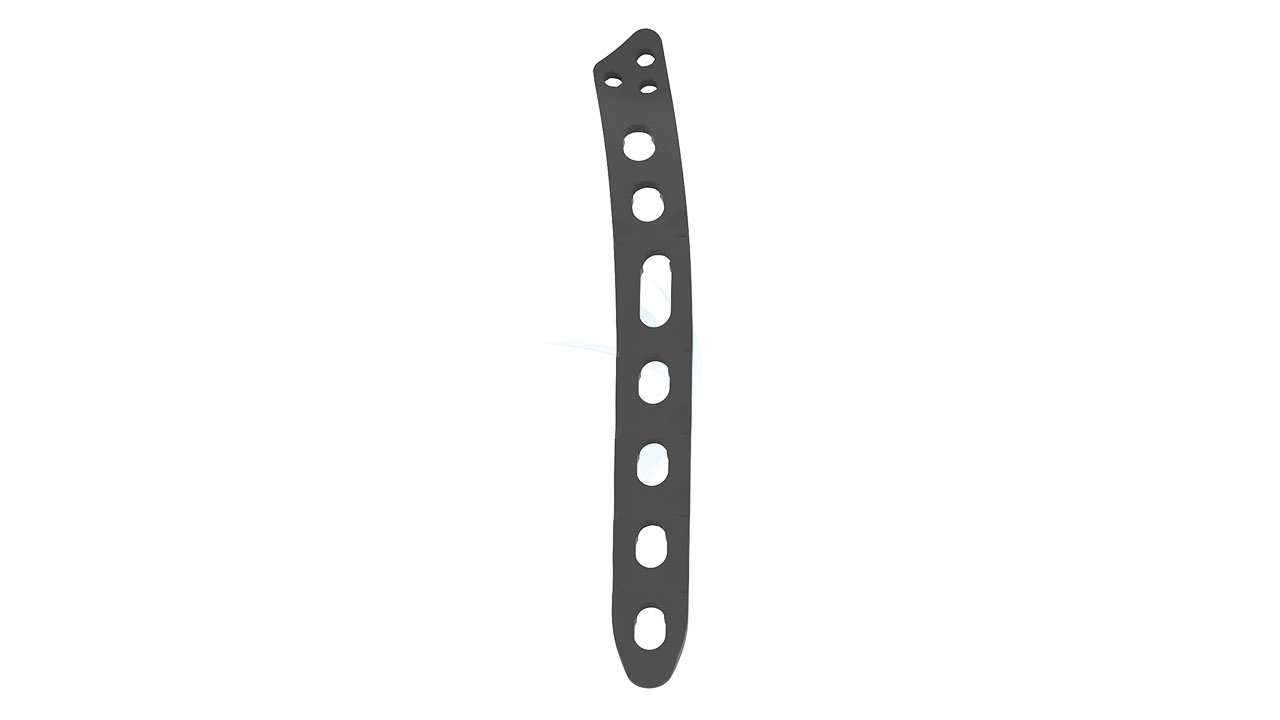

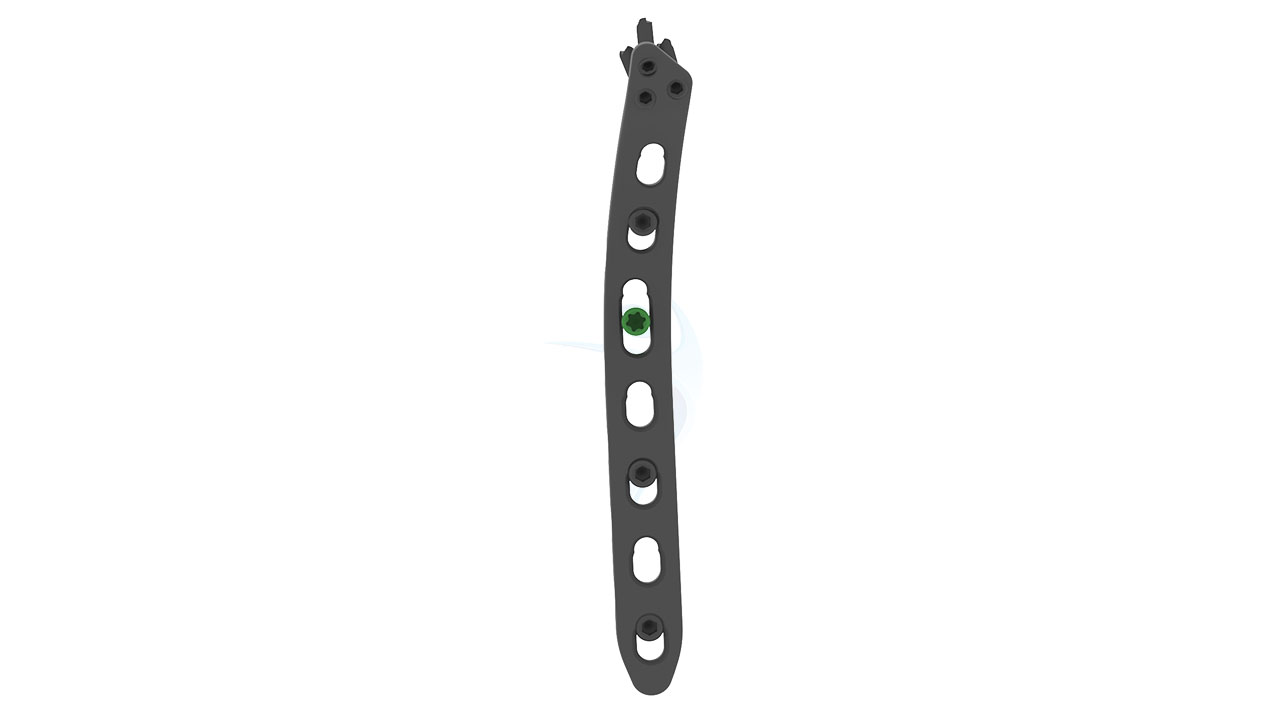

Distal Humerus Plate (ASLP) - 2.7 / 3.5 Medial
Product Overview
The 2.7/3.5 Distal Humerus Medial Plate (ASLP) is a specialized orthopedic implant tailored for addressing fractures in the distal humerus. Its design prioritizes stability and precise fixation, facilitating effective healing and restoration of function. With versatile options and meticulous craftsmanship, this plate offers surgeons a reliable solution for diverse patient needs, ensuring optimal outcomes and patient satisfaction.
Product Uses
- Fractures of the Distal Humerus : This implant is frequently used to treat fractures of the distal humerus, which is the lower part of the upper arm bone near the elbow joint.
- Intra-articular Fractures : Injuries that involve the articular surface of the elbow joint, such as fractures that extend into the joint space, can be effectively managed with the Distal Humerus Elbow Plate.
- Supracondylar Fractures : Supracondylar fractures occur just above the elbow joint and are common in both adults and children.
- Complex Elbow Fractures : Complex fractures of the elbow joint, including those with multiple fragments or significant soft tissue damage, often require surgical intervention.
- Nonunions and Malunions : When fractures fail to heal (nonunion) or heal in an incorrect position (malunion), revision surgery may be necessary. The Distal Humerus Elbow Plate enables surgeons to reposition the bone fragments and provide secure fixation for successful bone healing.
Product Specification
- Material : The plate is commonly made of biocompatible materials such as titanium or stainless steel, which are strong, corrosion-resistant, and compatible with the human body.
- Plate Design : The plate is specifically designed to fit the anatomy of the distal humerus and the medial aspect of the elbow joint.
- Plate Thickness : The plate is available in two thickness options: 2.7 mm and 3.5 mm. The choice of thickness depends on factors such as the patient's bone quality, the severity of the fracture, and the surgeon's preference for stability.
- Plate Length : The length of the plate varies depending on the size of the patient's anatomy and the specific requirements of the surgical procedure.
- Radiopacity : The plate is radiopaque, meaning it is visible on X-ray and other imaging studies. This allows the surgeon to accurately assess the position of the plate and screws during and after surgery.
Distal Humerus Plate (ASLP) - 2.7 / 3.5 Medial Sizes
| Product Code | Name | Material | Hole | Angled |
|---|---|---|---|---|
| PT066.03.01 | 3.5, Distal Humerus Medial Plates, Right, 3 Holes - ASLP | Titanium | 3 | Right |
| PT066.03.02 | 3.5, Distal Humerus Medial Plates, Left, 3 Holes - ASLP | Titanium | 3 | Left |
| PT066.05.01 | 3.5, Distal Humerus Medial Plates, Right, 5 Holes - ASLP | Titanium | 5 | Right |
| PT066.05.02 | 3.5, Distal Humerus Medial Plates, Left, 5 Holes - ASLP | Titanium | 5 | Left |
| PT066.07.01 | 3.5, Distal Humerus Medial Plates, Right, 7 Holes - ASLP | Titanium | 7 | Right |
| PT066.07.02 | 3.5, Distal Humerus Medial Plates, Left, 7 Holes - ASLP | Titanium | 7 | Left |
| PT066.09.01 | 3.5, Distal Humerus Medial Plates, Right, 9 Holes - ASLP | Titanium | 9 | Right |
| PT066.09.02 | 3.5, Distal Humerus Medial Plates, Left, 9 Holes - ASLP | Titanium | 9 | Left |
| PS066.03.01 | 3.5, Distal Humerus Medial Plates, Right, 3 Holes (LVM) - ASLP | SS316 LVM | 3 | Right |
| PS066.03.02 | 3.5, Distal Humerus Medial Plates, Left, 3 Holes (LVM) - ASLP | SS316 LVM | 3 | Left |
| Product Code | Name | Material | Hole | Angled |
|---|---|---|---|---|
| PS066.05.01 | 3.5, Distal Humerus Medial Plates, Right, 5 Holes - ASLP | SS316 LVM | 5 | Right |
| PS066.05.02 | 3.5, Distal Humerus Medial Plates, Left, 5 Holes - ASLP | SS316 LVM | 5 | Left |
| PS066.07.01 | 3.5, Distal Humerus Medial Plates, Right, 7 Holes - ASLP | SS316 LVM | 7 | Right |
| PS066.07.02 | 3.5, Distal Humerus Medial Plates, Left, 7 Holes - ASLP | SS316 LVM | 7 | Left |
| PS066.09.01 | 3.5, Distal Humerus Medial Plates, Right, 9 Holes - ASLP | SS316 LVM | 9 | Right |
| PS066.09.02 | 3.5, Distal Humerus Medial Plates, Left, 9 Holes - ASLP | SS316 LVM | 9 | Left |
Comprehensive Guide for Distal Humerus Plate (ASLP) - 2.7 / 3.5 Medial
- Patient Evaluation :The patient's medical history, including any previous surgeries, allergies, or medical conditions, is reviewed. Imaging studies such as X-rays, CT scans, or MRI scans are performed to assess the extent of the elbow injury or condition and aid in surgical planning.
- Surgical Planning : The appropriate size and thickness of the Distal Humerus Elbow Plate are determined based on the patient's anatomy and the specific requirements of the surgical procedure.
- Patient Preparation : The patient receives instructions on pre-operative preparations, which may include fasting prior to surgery, discontinuation of certain medications, and pre-operative skin preparation.
- Consent and Education : The surgeon discusses the planned procedure, potential risks, expected outcomes, and alternative treatment options with the patient. The patient has the opportunity to ask questions and provide informed consent for the surgery.
- Anesthesia : The patient is placed under general anesthesia to ensure comfort and immobility during the surgical procedure. Regional anesthesia techniques may also be used to provide additional pain control during and after surgery.
- Incision : The surgeon makes an incision over the elbow joint, typically along the medial aspect of the arm, to access the distal humerus and the fracture site.
- Fracture Reduction : If the fracture fragments are displaced, the surgeon carefully manipulates them into proper alignment (reduction) to restore normal anatomy and alignment of the elbow joint.
- Plate Placement : The Distal Humerus Elbow Plate is carefully positioned over the fracture site, with its pre-contoured shape matching the natural curvature of the distal humerus.
- Closure : Once the plate is securely in place and the fracture is stabilized, the incision is closed using sutures or staples. Sterile dressings are applied to the surgical site to promote healing and reduce the risk of infection.
- Recovery Room : The patient is monitored closely in the recovery room as they wake up from anesthesia. Pain management medications are administered as needed to ensure comfort during the initial recovery period.
- Physical Therapy : Depending on the surgeon's recommendations and the patient's condition, physical therapy may begin soon after surgery to promote mobility, strength, and range of motion in the elbow joint.
- Follow-Up Care : The patient will have regular follow-up appointments with the surgeon to monitor healing progress, assess the function of the implant, and remove sutures or staples as needed.
- Activity Restrictions : The patient will be instructed on activity restrictions and proper care of the surgical site to minimize the risk of complications and support optimal healing.
- Long-Term Management : Long-term management may involve ongoing monitoring of the implant, periodic imaging studies, and adjustments to the rehabilitation program as needed.
