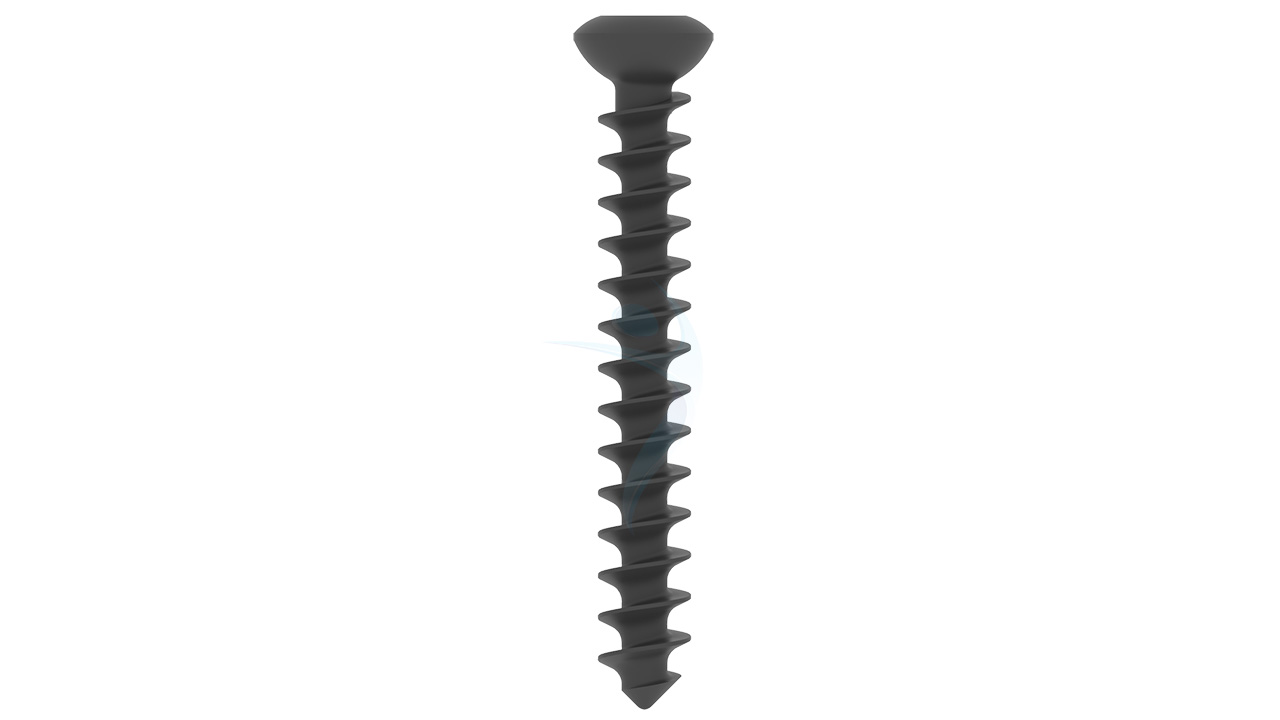

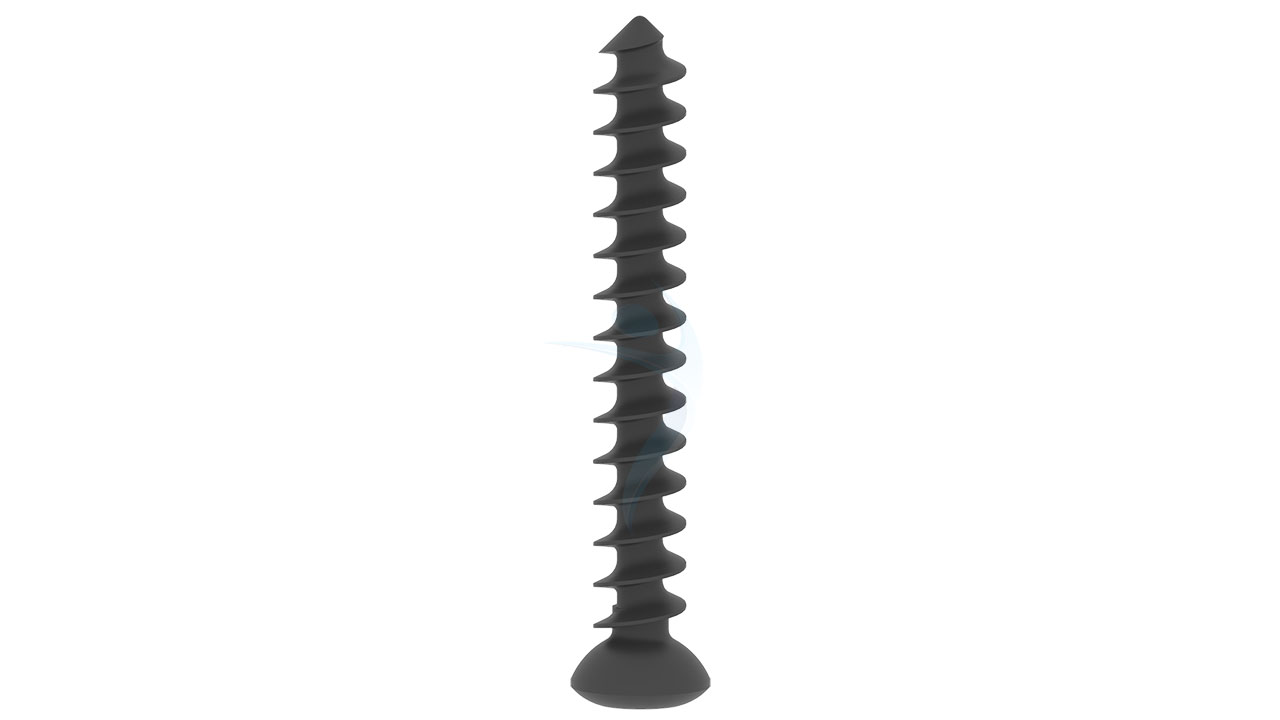

4.0 mm Cancellous Screw
Product Overview

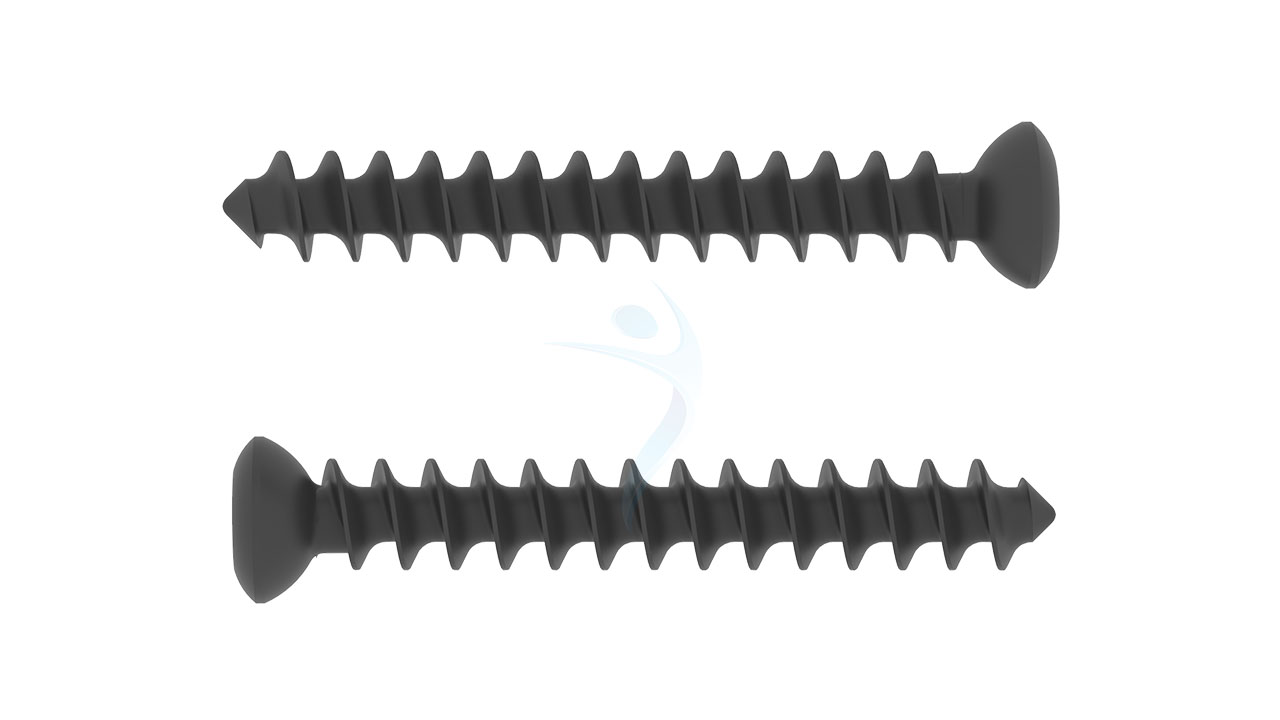

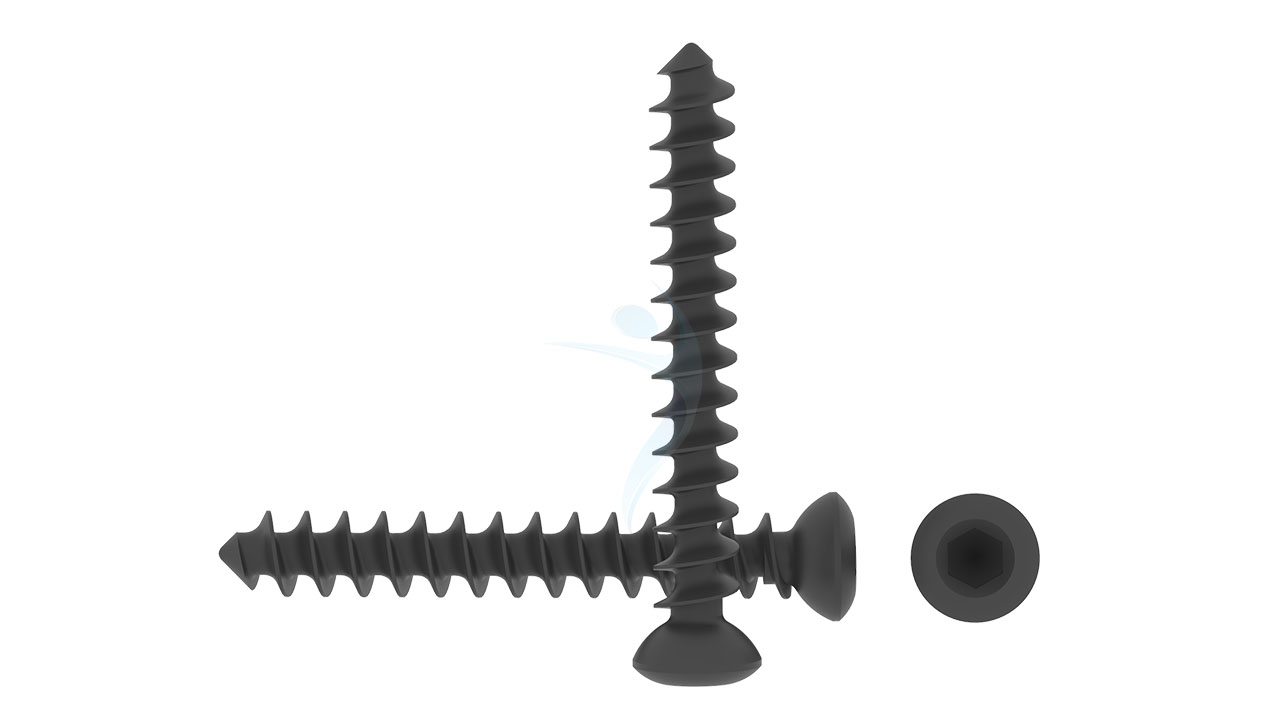

The 4.0 mm Cancellous Screw is a specialized medical device designed for orthopedic applications. It is a screw with a diameter of 4.0 mm , constructed from high-quality stainless steel or titanium alloy. This screw is specifically intended for use in cancellous bone. The 4.0 mm Cancellous Screw features a cancellous thread design, providing excellent grip and stability within cancellous bone. It is self-tapping, allowing for easy insertion without the need for pre-drilling. The screw is available in various lengths to accommodate different surgical needs and patient anatomies.
Product Uses
- Fracture Fixation : The 4 mm Cancellous Screw is frequently employed in the fixation of fractures involving cancellous bone.
- Bone Grafting : During bone grafting procedures, the 4 mm Cancellous Screw is often utilized to secure bone grafts in place.
- Osteotomies : In corrective osteotomy surgeries, the 4 mm Cancellous Screw can be used to realign bones and maintain the desired position while the bone heals.
- Joint Fusions : When fusing joints, such as in arthrodesis procedures, the 4 mm Cancellous Screw may be employed to immobilize and stabilize the joint. It facilitates the fusion process by holding the bones securely together.
Product Specification
- Diameter :4 mm This refers to the diameter of the screw shaft itself. It is the primary dimension that determines the size of the screw.
- Material :The screw is constructed from high-quality stainless steel (LVM) or titanium alloy.Stainless steel (LVM) provides strength and corrosion resistance. Titanium alloy offers high strength, biocompatibility, and low density.
- Thread Design : The screw features a specialized cancellous thread pattern designed to optimize engagement and fixation in cancellous bone. The cancellous threads are spaced to provide effective grip and stability.
- Self-Tapping : The screw is designed with a self-tapping feature, allowing it to penetrate the bone without the need for pre-drilling. This feature helps simplify and expedite the surgical procedure.
4.0 mm Cancellous Screw Sizes
| Product Code | Name | Material | Diameter (mm) | length (mm) |
|---|---|---|---|---|
| ST036.12 | Cancellous Screw , ø 4.0 mm fully threaded , L 12 mm | Titanium | Ø4.0 | 12 |
| ST036.14 | Cancellous Screw , ø 4.0 mm fully threaded , L 14 mm | Titanium | Ø4.0 | 14 |
| ST036.16 | Cancellous Screw , ø 4.0 mm fully threaded , L 16 mm | Titanium | Ø4.0 | 16 |
| ST036.18 | Cancellous Screw , ø 4.0 mm fully threaded , L 18 mm | Titanium | Ø4.0 | 18 |
| ST036.20 | Cancellous Screw , ø 4.0 mm fully threaded , L 20 mm | Titanium | Ø4.0 | 20 |
| ST036.22 | Cancellous Screw , ø 4.0 mm fully threaded , L 22 mm | Titanium | Ø4.0 | 22 |
| ST036.24 | Cancellous Screw , ø 4.0 mm fully threaded , L 24 mm | Titanium | Ø4.0 | 24 |
| ST036.26 | Cancellous Screw , ø 4.0 mm fully threaded , L 26 mm | Titanium | Ø4.0 | 26 |
| ST036.28 | Cancellous Screw , ø 4.0 mm fully threaded , L 28 mm | Titanium | Ø4.0 | 28 |
| ST036.30 | Cancellous Screw , ø 4.0 mm fully threaded , L 30 mm | Titanium | Ø4.0 | 30 |
| Product Code | Name | Material | Diameter (mm) | length (mm) |
|---|---|---|---|---|
| ST036.35 | Cancellous Screw , ø 4.0 mm fully threaded , L 35 mm | Titanium | Ø4.0 | 35 |
| ST036.40 | Cancellous Screw , ø 4.0 mm fully threaded , L 40 mm | Titanium | Ø4.0 | 40 |
| ST036.45 | Cancellous Screw , ø 4.0 mm fully threaded , L 45 mm | Titanium | Ø4.0 | 45 |
| ST036.50 | Cancellous Screw , ø 4.0 mm fully threaded , L 50 mm | Titanium | Ø4.0 | 50 |
| ST036.55 | Cancellous Screw , ø 4.0 mm fully threaded , L 55 mm | Titanium | Ø4.0 | 55 |
| ST036.60 | Cancellous Screw , ø 4.0 mm fully threaded , L 60 mm | Titanium | Ø4.0 | 60 |
| SS036.12 | Cancellous Screw , ø 4.0 mm fully threaded , L 12 mm | SS 316 LVM | Ø4.0 | 12 |
| SS036.14 | Cancellous Screw , ø 4.0 mm fully threaded , L 14 mm | SS 316 LVM | Ø4.0 | 14 |
| SS036.16 | Cancellous Screw , ø 4.0 mm fully threaded , L 16 mm | SS 316 LVM | Ø4.0 | 16 |
| SS036.18 | Cancellous Screw , ø 4.0 mm fully threaded , L 18 mm | SS 316 LVM | Ø4.0 | 18 |
| Product Code | Name | Material | Diameter (mm) | length (mm) |
|---|---|---|---|---|
| SS036.20 | Cancellous Screw , ø 4.0 mm fully threaded , L 20 mm | SS 316 LVM | Ø4.0 | 20 |
| SS036.22 | Cancellous Screw , ø 4.0 mm fully threaded , L 22 mm | SS 316 LVM | Ø4.0 | 22 |
| SS036.24 | Cancellous Screw , ø 4.0 mm fully threaded , L 24 mm | SS 316 LVM | Ø4.0 | 24 |
| SS036.26 | Cancellous Screw , ø 4.0 mm fully threaded , L 26 mm | SS 316 LVM | Ø4.0 | 26 |
| SS036.28 | Cancellous Screw , ø 4.0 mm fully threaded , L 28 mm | SS 316 LVM | Ø4.0 | 28 |
| SS036.30 | Cancellous Screw , ø 4.0 mm fully threaded , L 30 mm | SS 316 LVM | Ø4.0 | 30 |
| SS036.35 | Cancellous Screw , ø 4.0 mm fully threaded , L 35 mm | SS 316 LVM | Ø4.0 | 35 |
| SS036.40 | Cancellous Screw , ø 4.0 mm fully threaded , L 40 mm | SS 316 LVM | Ø4.0 | 40 |
| SS036.45 | Cancellous Screw , ø 4.0 mm fully threaded , L 45 mm | SS 316 LVM | Ø4.0 | 45 |
| SS036.50 | Cancellous Screw , ø 4.0 mm fully threaded , L 50 mm | SS 316 LVM | Ø4.0 | 50 |
| Product Code | Name | Material | Diameter (mm) | length (mm) | Thread Length |
|---|---|---|---|---|---|
| SS036.55 | Cancellous Screw , ø 4.0 mm fully threaded , L 55 mm | SS 316 LVM | Ø4.0 | 55 | |
| SS036.60 | Cancellous Screw , ø 4.0 mm fully threaded , L 60 mm | SS 316 LVM | Ø4.0 | 60 | |

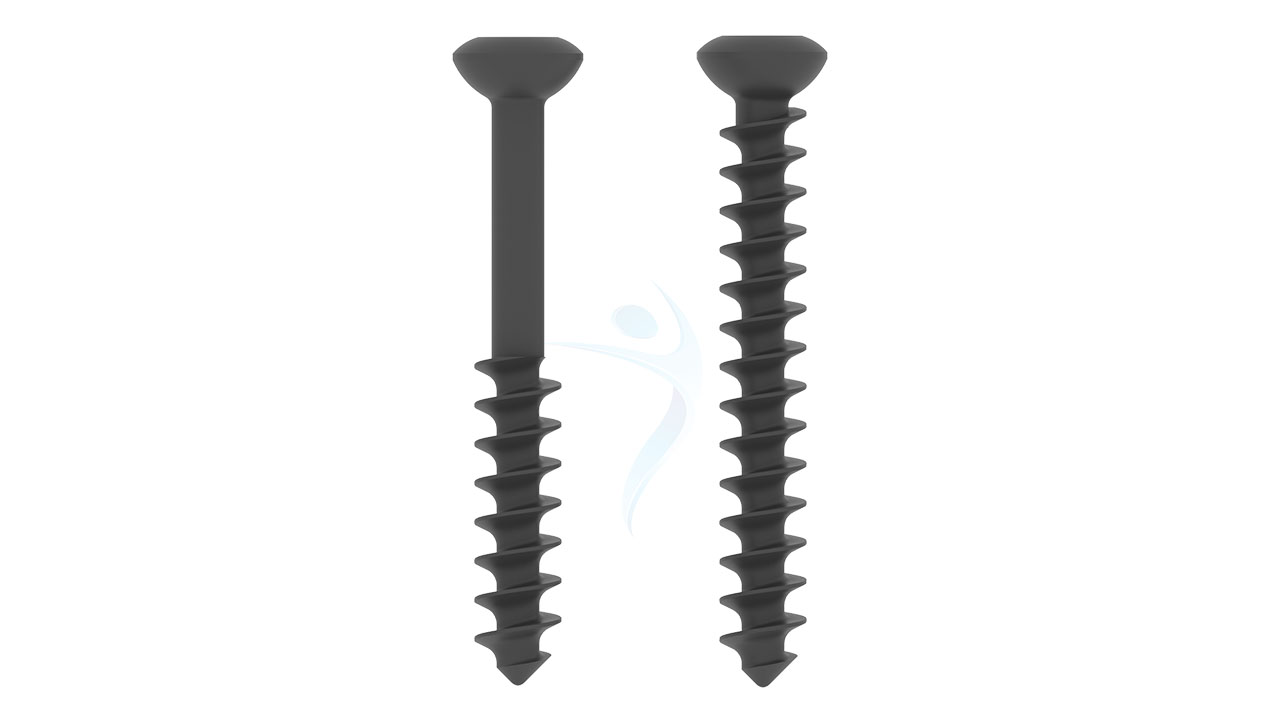

| ST037.12 | Cancellous Screw , ø 4.0 mm partially threaded , L 12 mm | Titanium | Ø4.0 | 12 | 5 |
| ST037.14 | Cancellous Screw , ø 4.0 mm partially threaded , L 14 mm | Titanium | Ø4.0 | 14 | 5 |
| ST037.16 | Cancellous Screw , ø 4.0 mm partially threaded , L 16 mm | Titanium | Ø4.0 | 16 | 6 |
| ST037.18 | Cancellous Screw , ø 4.0 mm partially threaded , L 18 mm | Titanium | Ø4.0 | 18 | 7 |
| ST037.20 | Cancellous Screw , ø 4.0 mm partially threaded , L 20 mm | Titanium | Ø4.0 | 20 | 8 |
| ST037.22 | Cancellous Screw , ø 4.0 mm partially threaded , L 22 mm | Titanium | Ø4.0 | 22 | 9 |
| ST037.24 | Cancellous Screw , ø 4.0 mm partially threaded , L 24 mm | Titanium | Ø4.0 | 24 | 10 |
| ST037.26 | Cancellous Screw , ø 4.0 mm partially threaded , L 26 mm | Titanium | Ø4.0 | 26 | 12 |
| Product Code | Name | Material | Diameter (mm) | length (mm) | Thread Length |
|---|---|---|---|---|---|
| ST037.28 | Cancellous Screw , ø 4.0 mm partially threaded , L 28 mm | Titanium | Ø4.0 | 28 | 14 |
| ST037.30 | Cancellous Screw , ø 4.0 mm partially threaded , L 30 mm | Titanium | Ø4.0 | 30 | 14 |
| ST037.35 | Cancellous Screw , ø 4.0 mm partially threaded , L 35 mm | Titanium | Ø4.0 | 35 | 14 |
| ST037.40 | Cancellous Screw , ø 4.0 mm partially threaded , L 40 mm | Titanium | Ø4.0 | 40 | 14 |
| ST037.45 | Cancellous Screw , ø 4.0 mm partially threaded , L 45 mm | Titanium | Ø4.0 | 45 | 15 |
| ST037.50 | Cancellous Screw , ø 4.0 mm partially threaded , L 50 mm | Titanium | Ø4.0 | 50 | 15 |
| ST037.55 | Cancellous Screw , ø 4.0 mm partially threaded , L 55 mm | Titanium | Ø4.0 | 55 | 16 |
| ST037.60 | Cancellous Screw , ø 4.0 mm partially threaded , L 60 mm | Titanium | Ø4.0 | 60 | 16 |
| ST037.12 | Cancellous Screw , ø 4.0 mm partially threaded , L 12 mm | Titanium | Ø4.0 | 12 | 5 |
| ST037.14 | Cancellous Screw , ø 4.0 mm partially threaded , L 14 mm | Titanium | Ø4.0 | 14 | 5 |
| Product Code | Name | Material | Diameter (mm) | length (mm) | Thread Length |
|---|---|---|---|---|---|
| ST037.16 | Cancellous Screw , ø 4.0 mm partially threaded , L 16 mm | Titanium | Ø4.0 | 16 | 6 |
| ST037.18 | Cancellous Screw , ø 4.0 mm partially threaded , L 18 mm | Titanium | Ø4.0 | 18 | 7 |
| ST037.20 | Cancellous Screw , ø 4.0 mm partially threaded , L 20 mm | Titanium | Ø4.0 | 20 | 8 |
| ST037.22 | Cancellous Screw , ø 4.0 mm partially threaded , L 22 mm | Titanium | Ø4.0 | 22 | 9 |
| ST037.24 | Cancellous Screw , ø 4.0 mm partially threaded , L 24 mm | Titanium | Ø4.0 | 24 | 10 |
| ST037.26 | Cancellous Screw , ø 4.0 mm partially threaded , L 26 mm | Titanium | Ø4.0 | 26 | 12 |
| ST037.28 | Cancellous Screw , ø 4.0 mm partially threaded , L 28 mm | Titanium | Ø4.0 | 28 | 14 |
| ST037.30 | Cancellous Screw , ø 4.0 mm partially threaded , L 30 mm | Titanium | Ø4.0 | 30 | 14 |
| ST037.35 | Cancellous Screw , ø 4.0 mm partially threaded , L 35 mm | Titanium | Ø4.0 | 35 | 14 |
| ST037.40 | Cancellous Screw , ø 4.0 mm partially threaded , L 40 mm | Titanium | Ø4.0 | 40 | 14 |
| Product Code | Name | Material | Diameter (mm) | length (mm) | Thread Length |
|---|---|---|---|---|---|
| ST037.45 | Cancellous Screw , ø 4.0 mm partially threaded , L 45 mm | Titanium | Ø4.0 | 45 | 15 |
| ST037.50 | Cancellous Screw , ø 4.0 mm partially threaded , L 50 mm | Titanium | Ø4.0 | 50 | 15 |
| ST037.55 | Cancellous Screw , ø 4.0 mm partially threaded , L 55 mm | Titanium | Ø4.0 | 55 | 16 |
| ST037.60 | Cancellous Screw , ø 4.0 mm partially threaded , L 60 mm | Titanium | Ø4.0 | 60 | 16 |
