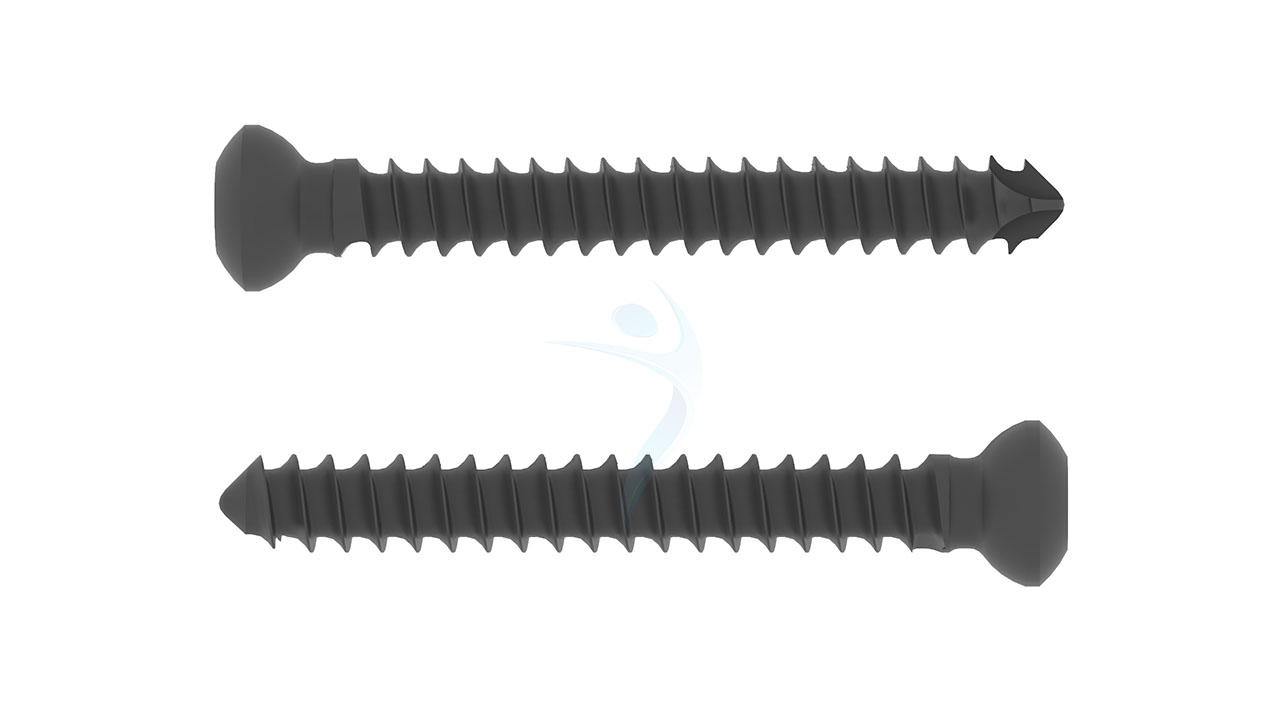

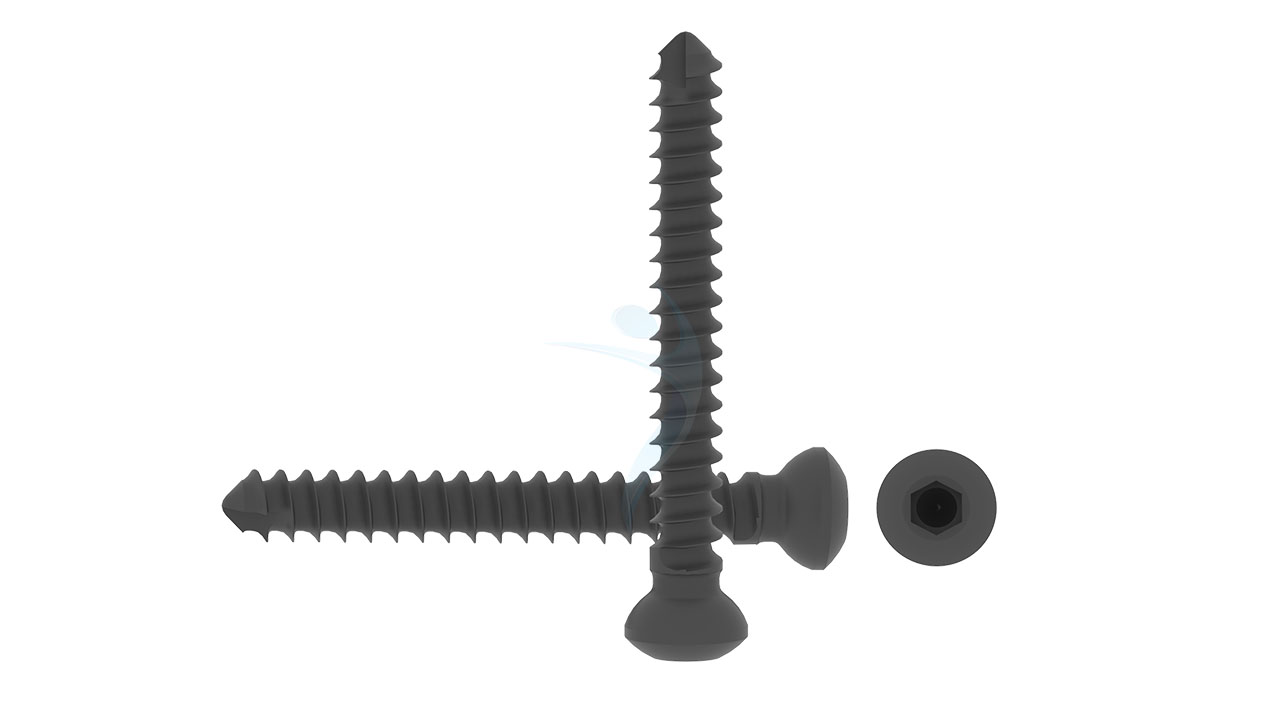

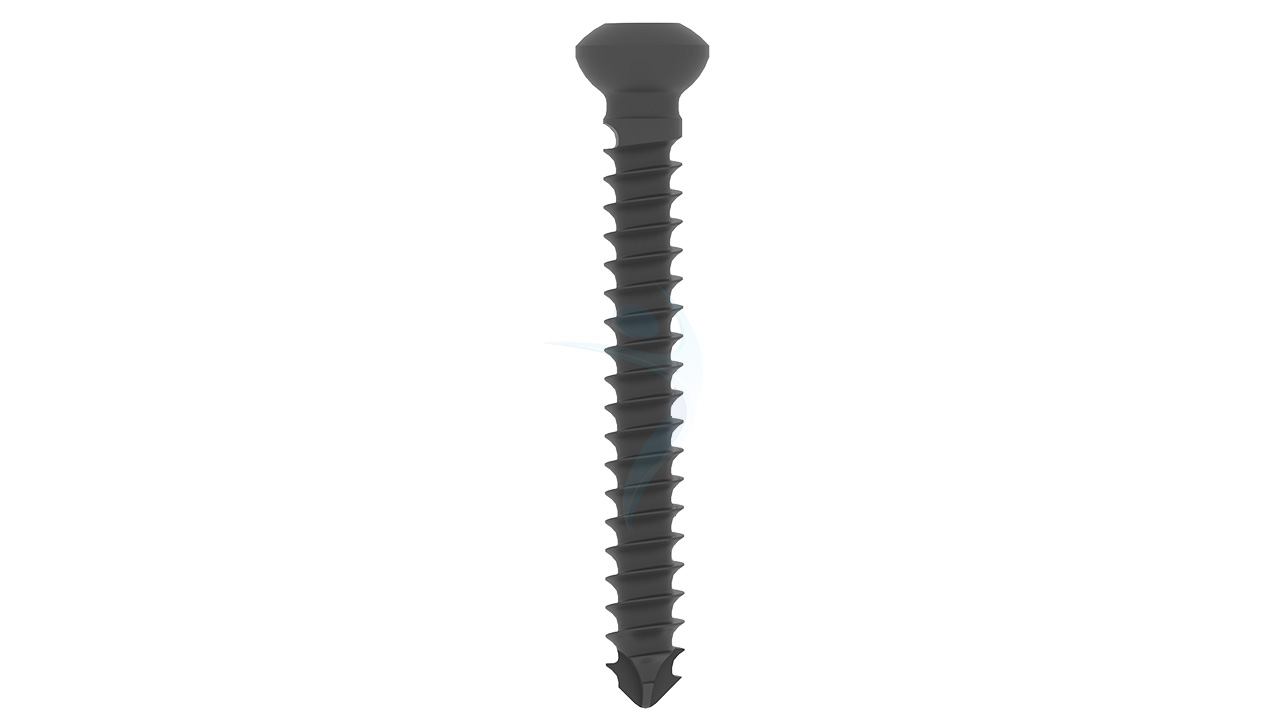

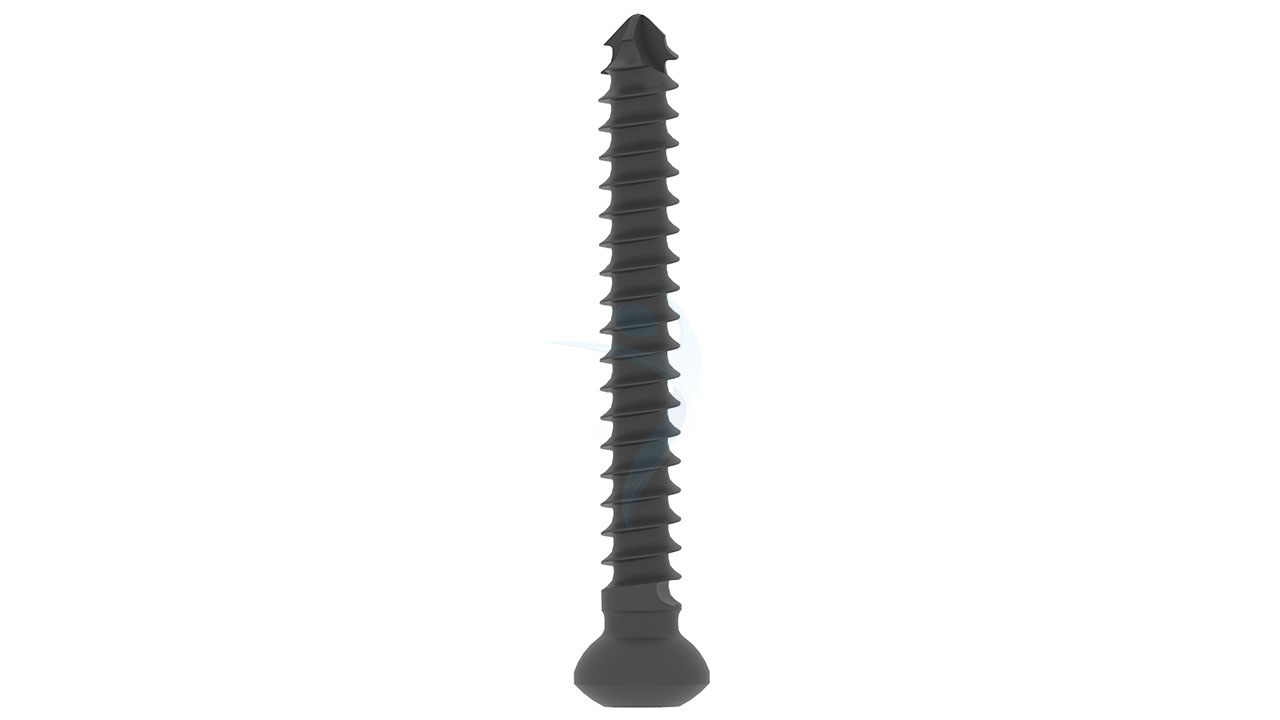

3.5 mm Cortical Screw

Product Overview

Secure and convenient cortical screw 3.5 mm for reliable bone fixation in orthopedic procedures. Trust in its strength and biocompatibility for successful outcomes. Our Cortical Screw 3.5 mm (Self Tapping) is a top-grade screw that exceeds industry standards for reliable and consistent performance. It is available in titanium and SS 316 LVM materials. Expertly crafted to provide unparalleled fixation when used with some of our plates including our proximal humerus plate, this orthopedic device delivers exceptional results.

Product Uses

Proximal Humerus Fractures : The combination of the self-tapping titanium 3.5 mm Cortical screw with the 3.5 mm Proximal Humerus Plate is commonly used for the fixation of proximal humerus fractures.

Osteotomies : Osteotomies involve intentionally cutting and repositioning bone to correct deformities, such as malunions or non-unions, and the self-tapping Cortical screw provides secure fixation during the healing process.

Revision Surgeries : The self-tapping titanium 3.5 mm Cortical screw and the Proximal Humerus Plate can be used in revision surgeries for failed previous fixation attempts or cases of implant failure.

Plate-Only Fixation : In certain cases where the fracture pattern and bone quality allow, the self-tapping titanium 3.5 mm Cortical screw may be used in conjunction with the 3.5 mm Proximal Humerus Plate for plate-only fixation.

Product Specification

Size and Length : The Self-Tapping Titanium 3.5 mm Cortical Screw is available in various lengths, ranging from 12 mm to 60 mm.

Thread Design : The screw has a self-tapping, cortical thread design. This feature allows for efficient insertion into the dense cortical bone of the proximal humerus, facilitating secure fixation without the need for pre-drilling.

Cannulated Design : The screw is cannulated, featuring an inner lumen that allows for insertion over a guide wire. This cannulated design enhances precision during insertion, reduces the risk of soft tissue damage, and facilitates accurate screw placement.

Material: The screw is made of titanium, a biocompatible material known for its excellent strength, durability, and corrosion resistance.

3.5 mm Cortical Screw Sizes

Product Code	Name	Material	Diameter (mm)	Length (mm)
ST028.12	Cortical Screw , ø 3.5 mm self-tapping , L 12 mm	Titanium	Ø3.50	12
ST028.14	Cortical Screw , ø 3.5 mm self-tapping , L 14 mm	Titanium	Ø3.50	14
ST028.16	Cortical Screw , ø 3.5 mm self-tapping , L 16 mm	Titanium	Ø3.50	16
ST028.18	Cortical Screw , ø 3.5 mm self-tapping , L 18 mm	Titanium	Ø3.50	18
ST028.20	Cortical Screw , ø 3.5 mm self-tapping , L 20 mm	Titanium	Ø3.50	20
ST028.22	Cortical Screw , ø 3.5 mm self-tapping , L 22 mm	Titanium	Ø3.50	22
ST028.24	Cortical Screw , ø 3.5 mm self-tapping , L 24 mm	Titanium	Ø3.50	24
ST028.26	Cortical Screw , ø 3.5 mm self-tapping , L 26 mm	Titanium	Ø3.50	26
ST028.28	Cortical Screw , ø 3.5 mm self-tapping , L 28 mm	Titanium	Ø3.50	28
ST028.30	Cortical Screw , ø 3.5 mm self-tapping , L 30 mm	Titanium	Ø3.50	30

Product Code	Name	Material	Diameter (mm)	Length (mm)
ST028.32	Cortical Screw , ø 3.5 mm self-tapping , L 32 mm	Titanium	Ø3.50	32
ST028.34	Cortical Screw , ø 3.5 mm self-tapping , L 34 mm	Titanium	Ø3.50	34
ST028.36	Cortical Screw , ø 3.5 mm self-tapping , L 36 mm	Titanium	Ø3.50	36
ST028.38	Cortical Screw , ø 3.5 mm self-tapping , L 38 mm	Titanium	Ø3.50	38
ST028.40	Cortical Screw , ø 3.5 mm self-tapping , L 40 mm	Titanium	Ø3.50	40
ST028.42	Cortical Screw , ø 3.5 mm self-tapping , L 42 mm	Titanium	Ø3.50	42
ST028.44	Cortical Screw , ø 3.5 mm self-tapping , L 44 mm	Titanium	Ø3.50	44
ST028.45	Cortical Screw , ø 3.5 mm self-tapping , L 45 mm	Titanium	Ø3.50	45
ST028.46	Cortical Screw , ø 3.5 mm self-tapping , L 46 mm	Titanium	Ø3.50	46
ST028.48	Cortical Screw , ø 3.5 mm self-tapping , L 48 mm	Titanium	Ø3.50	48

Product Code	Name	Material	Diameter (mm)	Length (mm)
ST028.50	Cortical Screw , ø 3.5 mm self-tapping , L 50 mm	Titanium	Ø3.50	50
ST028.52	Cortical Screw , ø 3.5 mm self-tapping , L 52 mm	Titanium	Ø3.50	52
ST028.54	Cortical Screw , ø 3.5 mm self-tapping , L 54 mm	Titanium	Ø3.50	54
ST028.56	Cortical Screw , ø 3.5 mm self-tapping , L 56 mm	Titanium	Ø3.50	56
ST028.58	Cortical Screw , ø 3.5 mm self-tapping , L 58 mm	Titanium	Ø3.50	58
ST028.60	Cortical Screw , ø 3.5 mm self-tapping , L 60 mm	Titanium	Ø3.50	60
SS028.12	Cortical Screw , ø 3.5 mm self-tapping , L 12 mm	SS 316 LVM	Ø3.50	12
SS028.14	Cortical Screw , ø 3.5 mm self-tapping , L 14 mm	SS 316 LVM	Ø3.50	14
SS028.16	Cortical Screw , ø 3.5 mm self-tapping , L 16 mm	SS 316 LVM	Ø3.50	16
SS028.18	Cortical Screw , ø 3.5 mm self-tapping , L 18 mm	SS 316 LVM	Ø3.50	18

Product Code	Name	Material	Diameter (mm)	Length (mm)
SS028.20	Cortical Screw , ø 3.5 mm self-tapping , L 20 mm	SS 316 LVM	Ø3.50	20
SS028.22	Cortical Screw , ø 3.5 mm self-tapping , L 22 mm	SS 316 LVM	Ø3.50	22
SS028.24	Cortical Screw , ø 3.5 mm self-tapping , L 24 mm	SS 316 LVM	Ø3.50	24
SS028.26	Cortical Screw , ø 3.5 mm self-tapping , L 26 mm	SS 316 LVM	Ø3.50	26
SS028.28	Cortical Screw , ø 3.5 mm self-tapping , L 28 mm	SS 316 LVM	Ø3.50	28
SS028.30	Cortical Screw , ø 3.5 mm self-tapping , L 30 mm	SS 316 LVM	Ø3.50	30
SS028.32	Cortical Screw , ø 3.5 mm self-tapping , L 32 mm	SS 316 LVM	Ø3.50	32
SS028.34	Cortical Screw , ø 3.5 mm self-tapping , L 34 mm	SS 316 LVM	Ø3.50	34
SS028.36	Cortical Screw , ø 3.5 mm self-tapping , L 36 mm	SS 316 LVM	Ø3.50	36
SS028.38	Cortical Screw , ø 3.5 mm self-tapping , L 38 mm	SS 316 LVM	Ø3.50	38

Product Code	Name	Material	Diameter (mm)	Length (mm)
SS028.40	Cortical Screw , ø 3.5 mm self-tapping , L 40 mm	SS 316 LVM	Ø3.50	40
SS028.45	Cortical Screw , ø 3.5 mm self-tapping , L 45 mm	SS 316 LVM	Ø3.50	45
SS028.50	Cortical Screw , ø 3.5 mm self-tapping , L 50 mm	SS 316 LVM	Ø3.50	50
