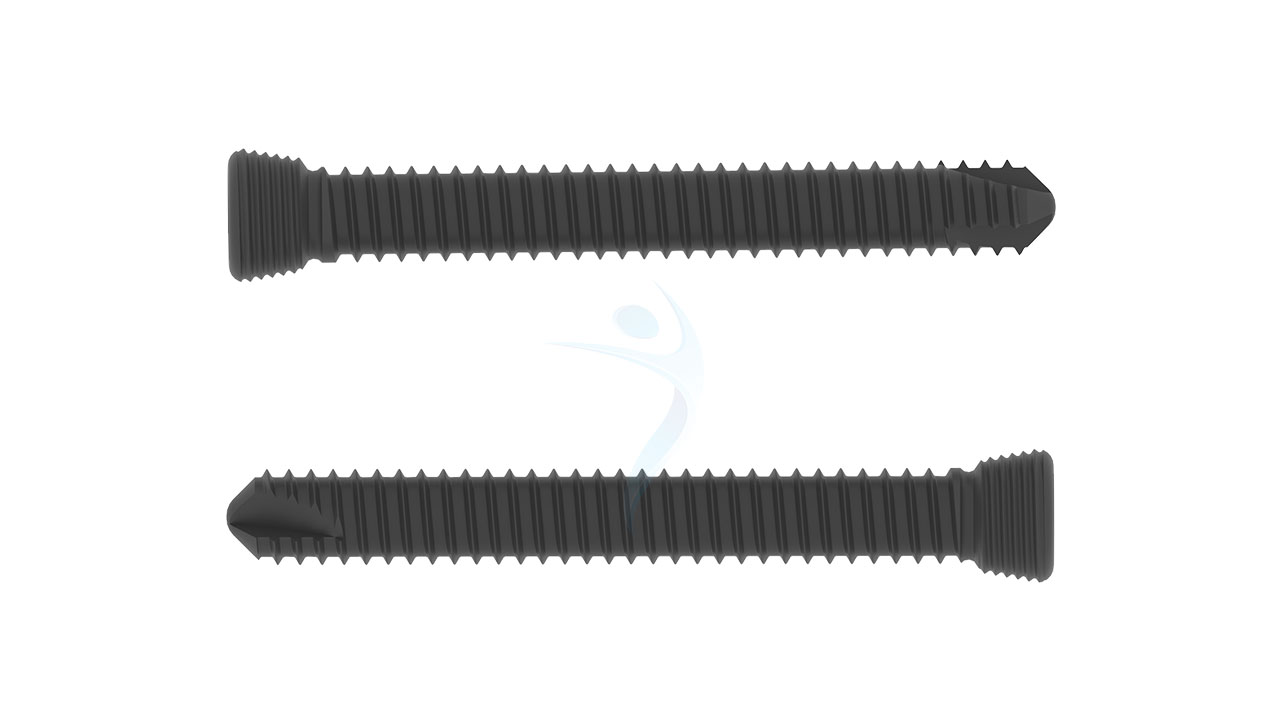

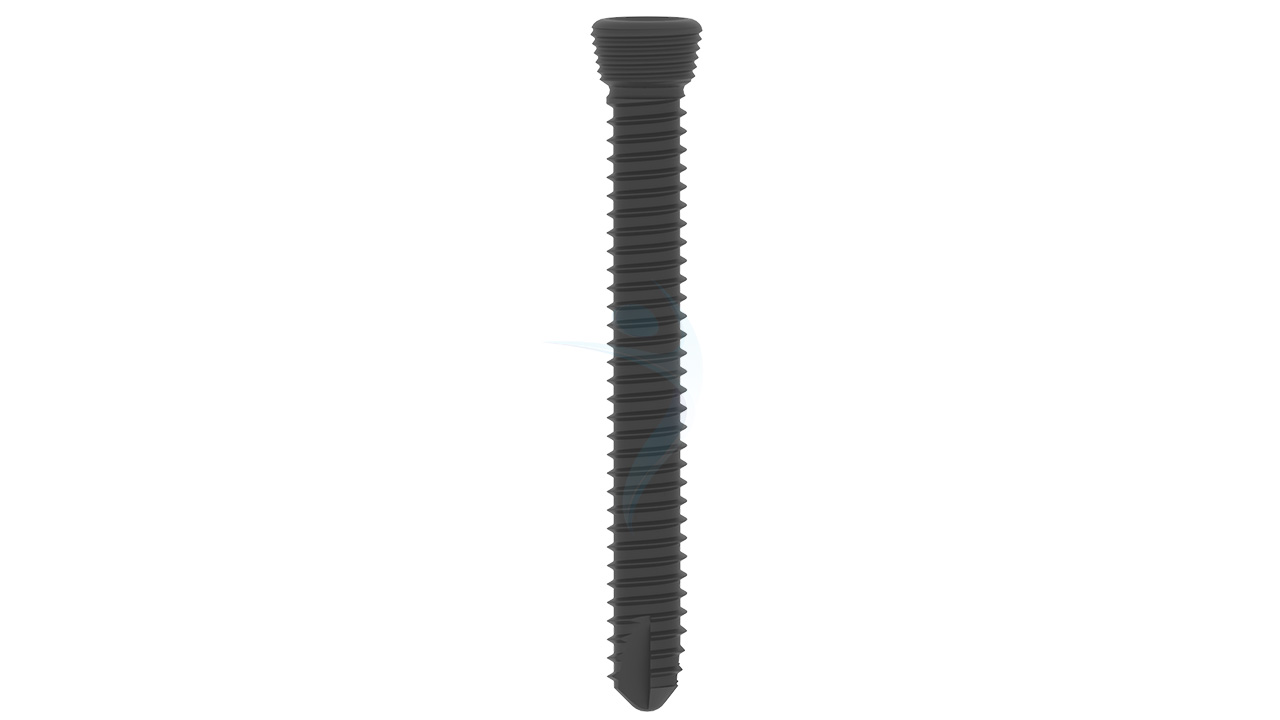

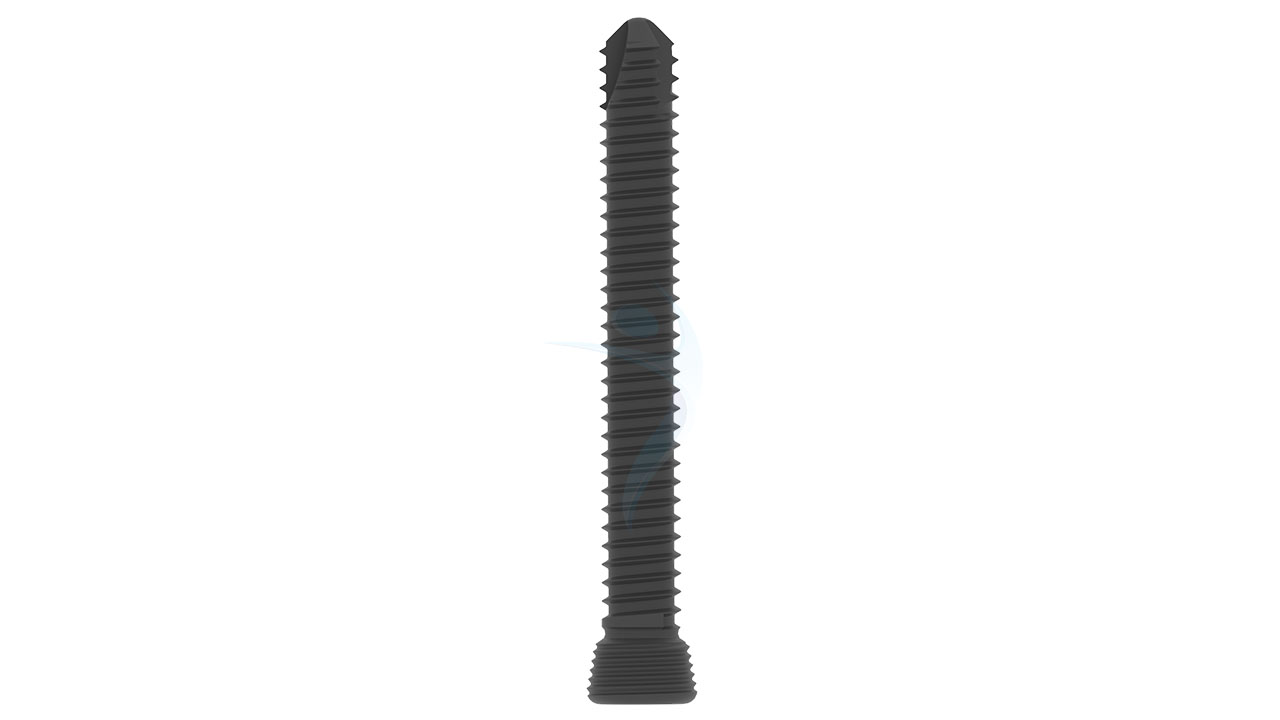

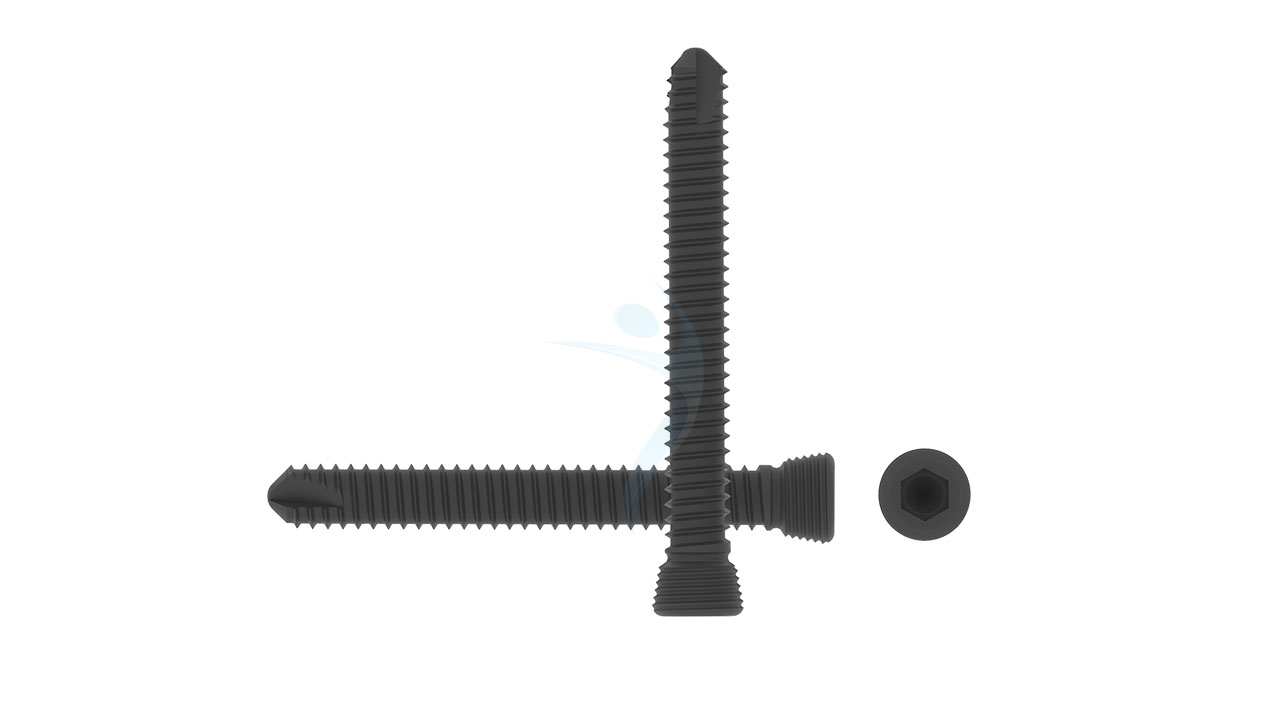

3.5 mm Locking Screw
Product Overview
Experience the strength and reliability of our 3.5 mm Locking Screw , expertly crafted from high-grade titanium material. Specifically designed for use with the Proximal Humerus Plate and Periarticular Proximal Humerus Plate, these screws provide secure fixation, promoting stability and facilitating optimal bone healing. Count on our premium orthopedic implant components for superior performance and successful outcomes.
Product Uses
- Fracture Fixation : The 3.5 mm Locking Screw, when used with the Proximal Humerus Plate, provides secure fixation and stability for fractures of the proximal humerus.
- Osteotomies : In cases where osteotomies (surgical bone cuts) are required in the proximal humerus, the combination of the 3.5 mm Locking Screw and the Proximal Humerus Plate allows for precise fixation and maintenance of the desired alignment.
- Periarticular Fractures : The Periarticular Proximal Humerus Plate, along with the 3.5 mm Locking Screw, is commonly used for fractures that involve the humeral head and the adjacent joint surfaces.
- Prophylactic Stabilization : In some cases, such as in patients with weakened bone due to osteoporosis or other underlying conditions, the 3.5 mm Locking Screw and the Proximal Humerus Plate may be used proactively to provide stability and prevent future fractures or complications.
Product Specification
- Diameter : 3.5 mm
- Material : High-grade titanium
- Thread Type : Self-tapping
- Head Type : Typically a low-profile or countersunk head to minimize soft tissue irritation and impingement
- Screw Length : Available in various lengths to accommodate different bone sizes and fracture patterns
- Screw Design : Locking design with threaded shaft and head to provide stable fixation and angular stability
3.5 mm Locking Screw Sizes
| Product Code | Name | Material | Diameter (mm) | length (mm) |
|---|---|---|---|---|
| ST032.12 | Locking Screw , ø 3.5mm self-tapping , L 12 mm | Titanium | Ø3.50 | 12 |
| ST032.14 | Locking Screw , ø 3.5mm self-tapping , L 14 mm | Titanium | Ø3.50 | 14 |
| ST032.16 | Locking Screw , ø 3.5mm self-tapping , L 16 mm | Titanium | Ø3.50 | 16 |
| ST032.18 | Locking Screw , ø 3.5mm self-tapping , L 18 mm | Titanium | Ø3.50 | 18 |
| ST032.20 | Locking Screw , ø 3.5mm self-tapping , L 20 mm | Titanium | Ø3.50 | 20 |
| ST032.22 | Locking Screw , ø 3.5mm self-tapping , L 22 mm | Titanium | Ø3.50 | 22 |
| ST032.24 | Locking Screw , ø 3.5mm self-tapping , L 24 mm | Titanium | Ø3.50 | 24 |
| ST032.26 | Locking Screw , ø 3.5mm self-tapping , L 26 mm | Titanium | Ø3.50 | 26 |
| ST032.28 | Locking Screw , ø 3.5mm self-tapping , L 28 mm | Titanium | Ø3.50 | 28 |
| ST032.30 | Locking Screw , ø 3.5mm self-tapping , L 30 mm | Titanium | Ø3.50 | 30 |
| Product Code | Name | Material | Diameter (mm) | length (mm) |
|---|---|---|---|---|
| ST032.32 | Locking Screw , ø 3.5mm self-tapping , L 32 mm | Titanium | Ø3.50 | 32 |
| ST032.34 | Locking Screw , ø 3.5mm self-tapping , L 34 mm | Titanium | Ø3.50 | 34 |
| ST032.35 | Locking Screw , ø 3.5mm self-tapping , L 35 mm | Titanium | Ø3.50 | 35 |
| ST032.36 | Locking Screw , ø 3.5mm self-tapping , L 36 mm | Titanium | Ø3.50 | 36 |
| ST032.38 | Locking Screw , ø 3.5mm self-tapping , L 38 mm | Titanium | Ø3.50 | 38 |
| ST032.40 | Locking Screw , ø 3.5mm self-tapping , L 40 mm | Titanium | Ø3.50 | 40 |
| ST032.42 | Locking Screw , ø 3.5mm self-tapping , L 42 mm | Titanium | Ø3.50 | 42 |
| ST032.44 | Locking Screw , ø 3.5mm self-tapping , L 44 mm | Titanium | Ø3.50 | 44 |
| ST032.45 | Locking Screw , ø 3.5mm self-tapping , L 45 mm | Titanium | Ø3.50 | 45 |
| ST032.46 | Locking Screw , ø 3.5mm self-tapping , L 46 mm | Titanium | Ø3.50 | 46 |
| Product Code | Name | Material | Diameter (mm) | length (mm) |
|---|---|---|---|---|
| ST032.48 | Locking Screw , ø 3.5mm self-tapping , L 48 mm | Titanium | Ø3.50 | 48 |
| ST032.50 | Locking Screw , ø 3.5mm self-tapping , L 50 mm | Titanium | Ø3.50 | 50 |
| ST032.55 | Locking Screw , ø 3.5mm self-tapping , L 55 mm | Titanium | Ø3.50 | 55 |
| ST032.60 | Locking Screw , ø 3.5mm self-tapping , L 60 mm | Titanium | Ø3.50 | 60 |
| ST032.65 | Locking Screw , ø 3.5mm self-tapping , L 65 mm | Titanium | Ø3.50 | 65 |
| ST032.70 | Locking Screw , ø 3.5mm self-tapping , L 70 mm | Titanium | Ø3.50 | 70 |
| ST032.75 | Locking Screw , ø 3.5mm self-tapping , L 75 mm | Titanium | Ø3.50 | 75 |
| ST032.80 | Locking Screw , ø 3.5mm self-tapping , L 80 mm | Titanium | Ø3.50 | 80 |
| ST032.85 | Locking Screw , ø 3.5mm self-tapping , L 85 mm | Titanium | Ø3.50 | 85 |
| ST032.90 | Locking Screw , ø 3.5mm self-tapping , L 90 mm | Titanium | Ø3.50 | 90 |
| Product Code | Name | Material | Diameter (mm) | length (mm) |
|---|---|---|---|---|
| ST032.95 | Locking Screw , ø 3.5mm self-tapping , L 95 mm | Titanium | Ø3.50 | 95 |
| ST032.100 | Locking Screw , ø 3.5mm self-tapping , L 100 mm | Titanium | Ø3.50 | 100 |
| SS032.12 | Locking Screw , ø 3.5mm self-tapping , L 12 mm | SS 316 LVM | Ø3.50 | 12 |
| SS032.14 | Locking Screw , ø 3.5mm self-tapping , L 14 mm | SS 316 LVM | Ø3.50 | 14 |
| SS032.16 | Locking Screw , ø 3.5mm self-tapping , L 16 mm | SS 316 LVM | Ø3.50 | 16 |
| SS032.18 | Locking Screw , ø 3.5mm self-tapping , L 18 mm | SS 316 LVM | Ø3.50 | 18 |
| SS032.20 | Locking Screw , ø 3.5mm self-tapping , L 20 mm | SS 316 LVM | Ø3.50 | 20 |
| SS032.22 | Locking Screw , ø 3.5mm self-tapping , L 22 mm | SS 316 LVM | Ø3.50 | 22 |
| SS032.24 | Locking Screw , ø 3.5mm self-tapping , L 24 mm | SS 316 LVM | Ø3.50 | 24 |
| SS032.26 | Locking Screw , ø 3.5mm self-tapping , L 26 mm | SS 316 LVM | Ø3.50 | 26 |
| Product Code | Name | Material | Diameter (mm) | length (mm) |
|---|---|---|---|---|
| SS032.28 | Locking Screw , ø 3.5mm self-tapping , L 28 mm | SS 316 LVM | Ø3.50 | 28 |
| SS032.30 | Locking Screw , ø 3.5mm self-tapping , L 30 mm | SS 316 LVM | Ø3.50 | 30 |
| SS032.32 | Locking Screw , ø 3.5mm self-tapping , L 32 mm | SS 316 LVM | Ø3.50 | 32 |
| SS032.34 | Locking Screw , ø 3.5mm self-tapping , L 34 mm | SS 316 LVM | Ø3.50 | 34 |
| SS032.35 | Locking Screw , ø 3.5mm self-tapping , L 35 mm | SS 316 LVM | Ø3.50 | 35 |
| SS032.36 | Locking Screw , ø 3.5mm self-tapping , L 36 mm | SS 316 LVM | Ø3.50 | 36 |
| SS032.38 | Locking Screw , ø 3.5mm self-tapping , L 38 mm | SS 316 LVM | Ø3.50 | 38 |
| SS032.40 | Locking Screw , ø 3.5mm self-tapping , L 40 mm | SS 316 LVM | Ø3.50 | 40 |
| SS032.42 | Locking Screw , ø 3.5mm self-tapping , L 42 mm | SS 316 LVM | Ø3.50 | 42 |
| SS032.44 | Locking Screw , ø 3.5mm self-tapping , L 44 mm | SS 316 LVM | Ø3.50 | 44 |
| Product Code | Name | Material | Diameter (mm) | length (mm) |
|---|---|---|---|---|
| SS032.45 | Locking Screw , ø 3.5mm self-tapping , L 45 mm | SS 316 LVM | Ø3.50 | 45 |
| SS032.46 | Locking Screw , ø 3.5mm self-tapping , L 46 mm | SS 316 LVM | Ø3.50 | 46 |
| SS032.48 | Locking Screw , ø 3.5mm self-tapping , L 48 mm | SS 316 LVM | Ø3.50 | 48 |
| SS032.50 | Locking Screw , ø 3.5mm self-tapping , L 50 mm | SS 316 LVM | Ø3.50 | 50 |
| SS032.55 | Locking Screw , ø 3.5mm self-tapping , L 55 mm | SS 316 LVM | Ø3.50 | 55 |
| SS032.60 | Locking Screw , ø 3.5mm self-tapping , L 60 mm | SS 316 LVM | Ø3.50 | 60 |
| SS032.65 | Locking Screw , ø 3.5mm self-tapping , L 65 mm | SS 316 LVM | Ø3.50 | 65 |
| SS032.70 | Locking Screw , ø 3.5mm self-tapping , L 70 mm | SS 316 LVM | Ø3.50 | 70 |
| SS032.75 | Locking Screw , ø 3.5mm self-tapping , L 75 mm | SS 316 LVM | Ø3.50 | 75 |
| SS032.80 | Locking Screw , ø 3.5mm self-tapping , L 80 mm | SS 316 LVM | Ø3.50 | 80 |
| Product Code | Name | Material | Diameter (mm) | length (mm) |
|---|---|---|---|---|
| SS032.85 | Locking Screw , ø 3.5mm self-tapping , L 85 mm | SS 316 LVM | Ø3.50 | 85 |
| SS032.90 | Locking Screw , ø 3.5mm self-tapping , L 90 mm | SS 316 LVM | Ø3.50 | 90 |
| SS032.95 | Locking Screw , ø 3.5mm self-tapping , L 95 mm | SS 316 LVM | Ø3.50 | 95 |
| SS032.100 | Locking Screw , ø 3.5mm self-tapping , L 100 mm | SS 316 LVM | Ø3.50 | 100 |
